Features: Guaranteed 1.0GHz Operating Frequency
8.0ps Output-to-Output Skew
340ps Propagation Delay
Accepts LVPECL and Differential HSTL Inputs
Synchronous Output Enable/Disable
Two Selectable Differential Inputs
3V to 3.6V Supply Voltage
On-Chip Reference for Single-Ended Operation
ESD Protection: ±2kV (Human Body Model)
Input Bias Resistors Drive Output Low for Open InputsApplicationData and Clock Drivers and Buffers
Central-Office Backplane Clock Distribution
DSLAM
Base Stations

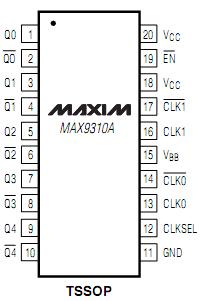

ATEPinout
SpecificationsVCCto GND...........................................................-0.3V to +4.1V
EN, CLKSEL, CLK_, CLK_, to GND............-0.3V to (VCC+ 0.3V)
CLK_ to CLK_.........................................................................±3V
Continuous Output Current.................................................24mA
Surge Output Current..........................................................50mA
VBBSink/Source Current...............................................±0.65mA
Continuous Power Dissipation (TA= +70°C)
Single-Layer PC Board
20-Pin TSSOP (derate 7.69mW/°C above +70°C)......615mW
Multilayer PC Board
20-Pin TSSOP (derate 11mW/°C above +70°C).........879mW
Junction-to-Ambient Thermal Resistance in Still Air
Single-Layer PC Board
20-Pin TSSOP.........................................................+130°C/W
Multilayer PC Board
20-Pin TSSOP...........................................................+91°C/W
Junction-to-Ambient Thermal Resistance with 500LFPM
Airflow Single-Layer PC board
20-Pin TSSOP...........................................................+96°C/W
Junction-to-Case Thermal Resistance
20-Pin TSSOP...........................................................+20°C/W
Operating Temperature Range..........................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range.............................-65°C to +150°C
ESD Protection
Human Body Model (inputs and outputs).......................±2kV
Lead Temperature (soldering, 10s).................................+300°C
DescriptionThe MAX9310A is a fast, low-skew 1:5 differential driver with selectable LVPECL inputs and LVDS outputs,designed for clock distribution applications. This device features an ultra-low propagation delay of 340ps with 48mA of supply current.
The MAX9310A operates from a 3V to 3.6V power sup-ply for use in 3.3V systems. A 2:1 input multiplexer is used to select one of two differential inputs. The input selection is controlled through the CLKSEL pin.
This device features a synchronous enable function.The MAX9310A LVPECL inputs can be driven by either a differential or single-ended signal. A VBBreference voltage output is provided for use with single-ended inputs. The device can also accept differential HSTL signals.
The MAX9310A is offered in a space-saving 20-pin TSSOP package and operates over the extended tem-perature range from -40°C to +85°C.
