MAX9232

· Programmable ±4%, ±2%, or OFF Spread-Spectrum Output for Reduced EMI
· Programmable DC Balance or Non-DC Balance
· DC Balance Allows AC-Coupling for Wider Input Common-Mode Voltage Range
· Spread Spectrum Operates in DC-Balanced or Non-DC-Balanced Mode
· FIFO Reset During Vertical Blanking
· 16MHz-to-34MHz (DC-Balanced) and 20MHz-to-40MHz (Non-DC-Balanced) Operation
· High-Impedance Outputs when PWRDWN is Low Allow Output Busing
· Fail-Safe Inputs in Non-DC-Balanced Mode
· Separate Output Supply Pins Allow Interface to +1.8V, +2.5V, +3.3V, and +5V Logic
· LVDS Inputs Meet ISO 10605 ESD Protection at ±25kV Air Discharge and ±8kV Contact Discharge
· LVDS Inputs Meet IEC 61000-4-2 Level 4 ESD Protection at ±15kV Air and ±8kV Contact Discharge
· LVDS Inputs Conform to ANSI TIA/EIA-644 Standard
· +3.3V Main Power Supply

The MAX9232 deserializes three LVDS serial-data inputs into 21 single-ended LVCMOS/LVTTL outputs. A separate parallel-rate LVDS clock provides the timing for deserialization. The MAX9232 features spread-spectrum capability, allowing the output data and clock frequency to spread over a specified range to reduce EMI. The single-ended data and clock outputs are programmable for a frequency spread of ±2%, ±4%, or no spread. The spread-spectrum function is also available when the MAX9232 operates in non-DC-balanced mode. The modulation rate of the spread is 32kHz for a 33MHz LVDS clock input and scales linearly with frequency. Using VSYNC on RxOUT13 and HSYNC on RxOUT6, a reset of the spread-spectrum FIFO is performed every frame, preventing FIFO overflow and underflow. The single-ended outputs have a separate supply, allowing +1.8V to +5V output logic levels.The MAX9232 features programmable DC balance,allowing isolation between a serializer and deserializer using AC-coupling. The MAX9232 operates with the MAX9209/MAX9213 serializer and has a falling-edge strobe. The LVDS inputs meet ISO 10605 ESD specifications with ±25kV Air-Gap Discharge and ±8kV Contact Discharge ratings.

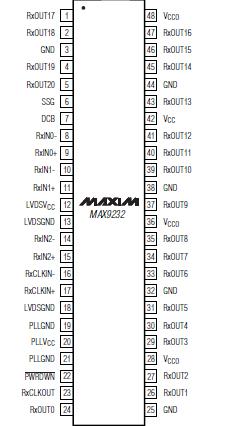

The MAX9232 is available in a 48-pin TSSOP package and operates within the -40°C to +85°C temperature range.
