MAX9211

Features:

♦ Programmable DC-Balanced or Non-DC-Balanced Operation
♦ DC Balance Allows AC-Coupling for Ground-Shift Tolerance
♦ As Low as 8MHz Operation
♦ Pin Compatible with DS90CR215 and DS90CR217 in Non-DC-Balanced Mode
♦ Integrated 110Ω (DC-Balanced) and 410Ω (Non-DC-Balanced) Output Resistors
♦ 5V Tolerant LVTTL/LVCMOS Data Inputs
♦ PLL Requires No External Components
♦ Up to 1.785Gbps Throughput
♦ LVDS Outputs Meet IEC 61000-4-2 and ISO 10605 Requirements
♦ LVDS Outputs Conform to ANSI TIA/EIA-644LVDS Standard
♦ Low-Profile 48-Lead TSSOP and Space-Saving QFN Packages
♦ -40°C to +85°C Operating Temperature Range
♦ +3.3V Supply


Application

Automotive Navigation Systems
Automotive DVD Entertainment Systems
Digital Copiers
Laser Printers

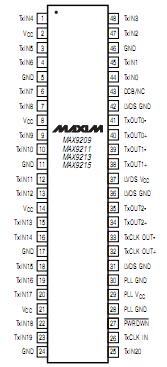

Pinout




Specifications

VCC to GND......................................................-0.5V to +4.0V
LVDS Outputs (TxOUT_, TxCLK OUT_) to GND .-0.5V to +4.0V
5V Tolerant LVTTL/LVCMOS Inputs
(TxIN_, TxCLK IN, PWRDWN ) to GND ..............-0.5V to +6.0V
(DCB/NC) to GND .................................-0.5V to (VCC + 0.5V)
LVDS Outputs (TxOUT_, TxCLK OUT_)
Short to GND and Differential Short ....................Continuous
Continuous Power Dissipation (TA = +70°C)
48-Pin TSSOP (derate 16mW/°C above +70°C) ... 1282mW
48-Lead QFN (derate 26.3mW/°C above +70°C) ..2105mW
Storage Temperature Range ....................-65°C to +150°C
Junction Temperature...............................................+150°C
ESD Protection
Human Body Model (RD = 1.5kΩ, CS = 100pF)
All Pins to GND..............................................................±2kV
IEC 61000-4-2 (RD = 330Ω, CS = 150pF)
    Contact Discharge (TxOUT_, TxCLK OUT_) to GND....±8kV
    Air Gap Discharge (TxOUT_, TxCLK OUT_) to GND ..±15kV
ISO 10605 (RD = 2kΩ, CS = 330pF)
    Contact Discharge (TxOUT_, TxCLK OUT_) to GND....±8kV
    Air Gap Discharge (TxOUT_, TxCLK OUT_) to GND ..±25kV
Lead Temperature (soldering, 10s) .........................+300°C


Description

The MAX9209/MAX9211/MAX9213/MAX9215 serialize 21 bits of LVTTL/LVCMOS parallel input data to three LVDS outputs. A parallel rate clock on a fourth LVDS output provides timing for deserialization.

The MAX9209/MAX9211/MAX9213/MAX9215 feature programmable DC balance, which allows isolation between the serializer and deserializer using AC-coupling. The DC balance circuits on each channel code the data, limiting the imbalance of transmitted ones and zeros to a defined range. The companion MAX9210/MAX9212,MAX9214 ,MAX9216 deserializers decode the data. When DC balance is not programmed, the serial-izers are compatible with non-DC balanced, 21-bit seri-alizers like the DS90CR215 and DS90CR217.
