MAX9164

Features: 3.3V Operation35% Lower Power than DS90LV019200Mbps Data Signaling Rate±1V Common-Mode Range±100mV Receiver SensitivityFlow-Through PinoutReceiver Output High for Open InputApplicationCell-Phone Base Stations Network Switches/RoutersAdd/Drop Muxes Backplane InterconnectDigital Cross-Conn...

product image

MAX9164 Picture
See larger image
SeekIC No. : 004412575 Detail

MAX9164: Features: 3.3V Operation35% Lower Power than DS90LV019200Mbps Data Signaling Rate±1V Common-Mode Range±100mV Receiver SensitivityFlow-Through PinoutReceiver Output High for Open InputApplicationCell...

MAX9164 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX9164
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 3.3V Operation
 35% Lower Power than DS90LV019
 200Mbps Data Signaling Rate
 ±1V Common-Mode Range
 ±100mV Receiver Sensitivity
 Flow-Through Pinout
 Receiver Output High for Open Input


Application

Cell-Phone Base Stations Network Switches/Routers
Add/Drop Muxes Backplane Interconnect
Digital Cross-Connects Clock Distribution
DSLAMs



Pinout

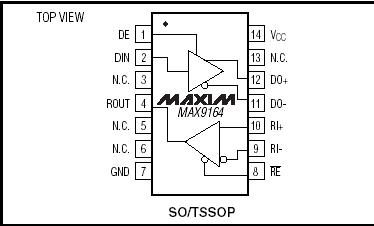

Connection Diagram


Specifications


VCC to GND...........................................................-0.3V to +4.0V
DO+, DO-, RI+, RI- to GND...................................-0.3V to +4.0V
DIN, ROUT, DE, RE to GND .......................-0.3V to (VCC + 0.3V)
Driver Short-Circuit Current .......................................Continuous
Continuous Power Dissipation (TA = +70°C)
14-Pin SO (derate 8.3mW/°C above +70°C)................667mW
14-Pin TSSOP (derate 9.1mW/°C above +70°C) .........727mW
Operating Temperature Range ...........................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range .............................-65°C to +150°C
ESD Protection
HBM (1.5kΩ, 100pF), DO+, DO-, RI+, RI-, DE, RE, DIN,
ROUT......................................................................> ±2kV
Lead Temperature (soldering, 10s) .................................+300°C


Description

The MAX9164 high-speed LVDS driver/receiver is designed specifically for low-power point-to-point applications.The MAX9164 operates from a single 3.3V power supply, and is pin compatible with DS90LV019.The device features an independent differential driverand receiver.
The MAX9164 driver output uses a current-steering configuration to generate a 3.1mA drive current. Thedriver accepts a single-ended input and translates it toLVDS signals at speeds up to 200Mbps over controlled-impedancemediaofapproximately 100Ω. Thetransmission media may be printed circuit board traces or    cables.Theenable logic input, DE, is used to enable or disable the driver.
The MAX9164 receiver detects a differential input as low as 100mV and translates it to single-ended output at speeds up to 200Mbps. The enable logic input, RE,is used to enable or disable the receiver.Inputs and outputs conform to the ANSI TIA/EIA-644 LVDS standard. The MAX9164 is offered in 14-lead SO and TSSOP packages, and is specified for operation from -40°C to +85°C.
