MAX9155

Features:

·Tiny SC70 Package
·Ultra-Low Jitter 23psp-p Added Deterministic Jitter (2²³-1 PRBS) 0.6psRMS Added Random Jitter
·0.5ns (min) Transition Time Minimizes Radiated Noise
·200Mbps Guaranteed Data Rate
·Fail-Safe Circuit Sets Output High for Undriven Inputs (Open, Terminated, or Shorted)
·Low 10mA Supply Current
·Low 6mA Supply Current in Fail-Safe
·Conforms to ANSI/EIA/TIA-644 LVDS Standard
·High-Impedance Inputs and Outputs in Power-Down Mode


Application

·Cellular Phone Base Stations
·DSLAMs
·Digital Cross-Connects
·Add/Drop Muxes
·Network Switches/Routers
·Multidrop Buses
·Cable Repeaters

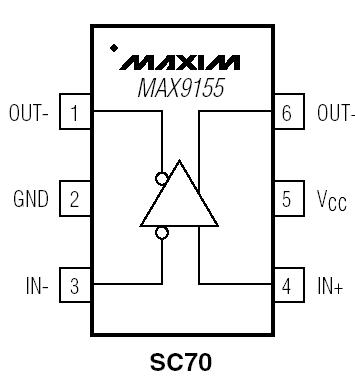

Pinout




Specifications

VCC to GND...................................................................................-0.3V to +4.0V
IN+, IN- to GND.............................................................................-0.3V to +4.0V
OUT+, OUT- to GND ......................................................................-0.3V to +4.0V
Short-Circuit Duration (OUT+, OUT-) .................................................Continuous
Continuous Power Dissipation (TA = +70°C)
6-Pin SC70 (derate 3.1mW/°C above +70°C).......................................245mW
Storage Temperature Range ................................................-65°C to +150°C
Junction Temperature............................................................................+150°C
Operating Temperature Range ...............................................-40°C to +85°C
ESD Protection
Human Body Model, IN+, IN-, OUT+, OUT- .................................................±8kV
Lead Temperature (soldering, 10s) ......................................................+300°C


Description

The MAX9155 is a low-voltage differential signaling (LVDS) repeater, which accepts a single LVDS input and duplicates the signal at a single LVDS output. Its low-jitter, low-noise performance makes it ideal for buffering LVDS signals sent over long distances or noisy environments, such as cables and backplanes.

The MAX9155's tiny size makes it especially suitable for minimizing stub lengths in multidrop backplane applications. The SC70 package (half the size of a SOT23) allows the MAX9155 to be placed close to the connector, thereby minimizing stub lengths and reflections on the bus. The point-to-point connection between the MAX9155 output and the destination IC, such as an FPGA or ASIC, allows the destination IC to be located at greater distances from the bus connector.

Ultra-low, 23psp-p added deterministic jitter and 0.6psRMS added random jitter ensure reliable communication in high-speed links that are highly sensitive to timing errors, especially those incorporating clock anddata recovery, PLLs, serializers, or deserializers. The MAX9155's switching performance guarantees a 200Mbps data rate, but minimizes radiated noise by guaranteeing 0.5ns minimum output transition time.

The MAX9155 has fail-safe circuitry that sets the output high for undriven open, short, or terminated inputs.

The MAX9155 operates from a single +3.3V supply and consumes only 10mA over a -40°C to +85°C temperature range. Refer to the MAX9129 data sheet for a quad bus LVDS driver, and to the MAX9156 data sheet for a low-jitter, low-noise LVPECL-to-LVDS level translator in an SC70 package.
