MAX8621Z

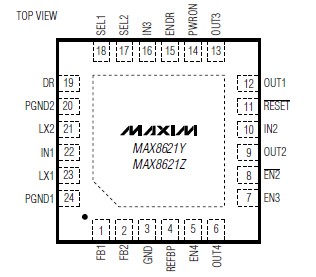

The MAX8621Y/MAX8621Z power-management integrated circuits (PMICs) are designed for a variety of portable devices including cellular handsets. These PMICs MAX8621Z include two high-efficiency step-down DC-DC converters, four low-dropout linear regulators (LDOs) with pin-programmable capability, one open-drain driver, a 60ms (typ) reset timer, and power-on/off control logic. These MAX8621Z offer high efficiency with a no-load supply current of 160A, and their small thin QFN 4mm x 4mm package makes them ideal for portable devices.

The step-down DC-DC converters MAX8621Z utilize a proprietary 4MHz hysteretic-PWM control scheme that allows for ultra-small external components. Internal synchronous rectification improves efficiency and eliminates the external Schottky diode that is required in conventional  step-down converters. The output voltage is adjustable from 0.6V to 3.3V. The output current of MAX8621Z  is guaranteed up to 500mA.

The four LDOs of MAX8621Z offer low 45VRMS output noise and low dropout of only 100mV at 100mA. OUT1 and OUT2 deliver 300mA (min) of continuous output current. OUT3 and OUT4 deliver 150mA (min) of continuous output current. The output voltages of MAX8621Z are pin selectable by SEL1 and SEL2 for flexibility. The MAX8621Y/ MAX8621Z offer different sets of LDO output voltages.

A microprocessor reset output (RESET) of MAX8621Z monitors OUT1 and warns the system of impending power loss, allowing safe shutdown. RESET asserts during power-up, power-down, shutdown, and fault conditions where VOUT1 is below its regulation voltage.

A 200mA driver output of MAX8621Z is provided to control LED backlighting or provide an open-drain connection for resistors such as in feedback networks.
