MAX6920

Features: 5MHz Industry-Standard 4-Wire Serial Interface 3V to 5.5V Logic Supply Range 8V to 76V Grid/Anode Supply Range Push-Pull CMOS High-Voltage Outputs Outputs can Source 40mA, Sink 4mA Continuously Outputs can Source 75mA Repetitive Pulses Outputs can be Paralleled for Higher Current Drive ...

product image

MAX6920 Picture
See larger image
SeekIC No. : 004411981 Detail

MAX6920: Features: 5MHz Industry-Standard 4-Wire Serial Interface 3V to 5.5V Logic Supply Range 8V to 76V Grid/Anode Supply Range Push-Pull CMOS High-Voltage Outputs Outputs can Source 40mA, Sink 4mA Contin...

MAX6920 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX6920
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

5MHz Industry-Standard 4-Wire Serial Interface
3V to 5.5V Logic Supply Range
8V to 76V Grid/Anode Supply Range
Push-Pull CMOS High-Voltage Outputs
Outputs can Source 40mA, Sink 4mA
Continuously
Outputs can Source 75mA Repetitive Pulses
Outputs can be Paralleled for Higher Current
   Drive
Any Output can be Used as a Grid or an Anode
   Driver
Blank Input Simplifies PWM Intensity Control
Small 20-Pin SO Package
-40°C to +125°C Temperature Range


Application

White Goods              Industrial Weighing
Gaming Machines       Security
Automotive                 Telecom
Avionics


Pinout

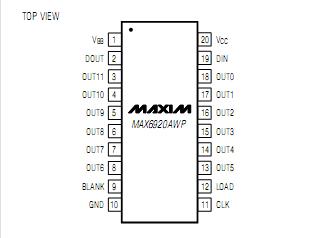

Connection Diagram


Specifications

Voltage (with respect to GND)
     VBB................................................................... -0.3V to +80V
     VCC.................................................................... -0.3V to +6V
     OUT_.......................................................-0.3V to (VBB+ 0.3V)
     All Other Pins..........................................-0.3V to (VCC+ 0.3V)
OUT_ Continuous Source Current......................................-45mA
OUT_ Pulsed (1ms max, 1/4 max duty) Source Current.....-80mA
Total OUT_ Continuous Source Current...........................-540mA
Total OUT_ Continuous Sink Current...................................60mA
Total OUT_ Pulsed (1ms max, 1/4 max duty)
     Source Current............................................................-960mA
OUT_ Sink Current...............................................................15mA
CLK, DIN, LOAD, BLANK, DOUT Current..............................±10mA
Continuous Power Dissipation
     20-Pin Wide SO (derate 10mW/°C over TA= +70°C)....800mW
Operating Temperature Range (TMIN to TMAX)....-40°C to +125°C
Junction Temperature........................................................+150°C
Storage Temperature Range...............................-65°C to +150°C
Lead Temperature (soldering, 10s)....................................+300°C


Description

The MAX6920 is a 12-output, 76V, vacuum fluorescent display (VFD) tube driver that interfaces a multiplexed VFD tube to a VFD controller such as the MAX6850MAX6853 or to a microcontroller. The MAX6920 is also ideal for driving either static VFD tubes or telecom relays.

Data is inputted using an industry-standard 4-wire serial interface (CLOCK, DATA, LOAD, BLANK) for compatibility with both industry-standard drivers and Maxim's VFD controllers. For easy display control, the active-high BLANK input forces all driver outputs low, turning the display off, and automatically puts the MAX6920 into shutdown mode. Display intensity may also be controlled by pulse-width  modulating the BLANK input.

The MAX6920 has a serial interface data output pin, DOUT, allowing any number of devices to be cascaded on the same serial interface.
The MAX6920 is available in a 20-pin SO package. Maxim also offers VFD drivers with either 20 (MAX6921/MAX6931) or 32 outputs (MAX6922 and MAX6932).
