Product Details

Description



Features:

·Capacitor-Adjustable Power-Up Sequencing Delay
·Internal Charge Pumps to Enhance External n-Channel FETs
·Capacitor-Adjustable Timeout Period Power-Good Output (MAX6880/MAX6882)
·Adjustable Undervoltage Lockout or Logic-Enable Input
·Internal 100Ω Pulldown for Each Output to Discharge Capacitive Load Quickly
·0.5V to 5.5V Nominal IN_/OUT_ Range
·2.7V to 5.5V Operating Voltage Range
·Immune to Short Voltage Transients
·Small 4mm x 4mm 24-Pin or 16-Pin Thin QFN Packages



Application

Multivoltage Systems
Networking Systems
Telecom
Storage Equipment
Servers/Workstations



Pinout

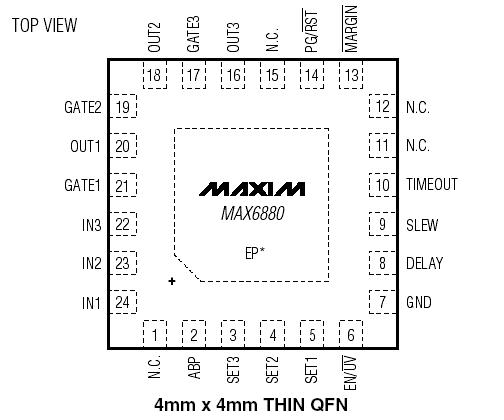

  Connection Diagram


Specifications

IN1, IN2, IN3.....................................................-0.3V to +6V
ABP ................................-0.3V to the highest of VIN1 - VIN3
SET1, SET2, SET3 ..............................................-0.3V to +6V
GATE1, GATE2, GATE3 .....................................-0.3V to +12V
OUT1, OUT2, OUT3 ............................................-0.3V to +6V
MARGIN .............................................................-0.3V to +6V
PG/RST, EN/UV ..................................................-0.3V to +6V
DELAY, SLEW, TIMEOUT.....................................-0.3V to +6V
OUT_ Current............................................................±50mA
GND Current............................................................. ±50mA
Input/Output Current (all pins except
OUT_ and GND) .........................................................±20mA
Continuous Power Dissipation (TA = +70°C)
16-Pin 4mm x 4mm Thin QFN
(derate 16.9mW/°C above +70°C)........................1349mW
24-Pin 4mm x 4mm Thin QFN
(derate 20.8mW/°C above +70°C).........................1667mW
Operating Temperature Range ...................-40°C to +85°C
Storage Temperature Range ....................-65°C to +150°C
Maximum Junction Temperature ...............................+150°C
Lead Temperature (soldering, 10s) ..........................+300°C



Description

The MAX6880MAX6883 dual-/triple-voltage monitors are designed to sequence power supplies during power-up condition. When all of the voltages exceed their respective thresholds, these devices turn on voltages to the system sequentially, enhancing n-channel MOSFETs used as switches. The time between each sequenced voltage is determined by an external capacitor, thus allowing flexibility in delay timing. The MAX6880/MAX6881 sequence three voltages and the MAX6882/MAX6883 sequence two voltages.

These MAX6880 initially monitor all of the voltages and when all of them are within their tolerances, the internal charge pumps enhance external n-channel MOSFETs in a sequential manner to apply the voltages to the system. Internal charge pumps drive the gate voltages 5V above the respective input voltage thereby ensuring the MOSFETs are fully enhanced to reduce the on-resistance.

The MAX6880MAX6883 feature capacitor-adjustable slew-rate control to provide controlled turn-on characteristics. After all of the voltages reach 92.5% of their final value, a power-good output (MAX6880/MAX6882) signal is active. The power-good output (PG/RST) can be delayed with an external capacitor to create a power-on reset delay. After the initial power-up phase, the MAX6880MAX6883 continue to monitor the voltages.

If any of the voltages falls below its threshold, the MOSFETs are quickly turned off and the voltages are tracked down together. An internal 100Ω pulldown resistor ensures that the capacitance at the MOSFET's source is discharged quickly. The power-good output of MAX6880 goes low to provide a system reset.

The MAX6880MAX6883 are available in small 4mm x 4mm 24-pin and 16-pin thin QFN packages and specified over the -40°C to +85°C extended operating temperature range.
