Features: Monitor Up to Four Power-Supply Voltages
Precision Factory-Set Reset Threshold Options for 5.0V, 3.3V, 3.0V, 2.5V, and 1.8V Supplies
Adjustable Voltage Threshold Monitors Down to 0.62V with 1.5% Accuracy
Low 35A Supply Current
Open-DrainRESET Output with 10A Internal Pullup
5s Propagation Delay (MAX6700)
140ms (min) Reset Timeout Period (MAX6710)
RESET Valid to IN1 = 1V or IN2 = 1V
Immune to Short Monitored Supply Transients
Guaranteed from -40°C to +85°C
Small 6-Pin SOT23 Package
ApplicationTelecommunications
High-End Printers
Desktop and Notebook Computers
Data Storage Equipment
Networking Equipment
Industrial Equipment
Set-Top Boxes
Servers/Workstations
Selector Guide with Top marks appears at end of data sheet.
Pin Configuration appears at end of data sheet.

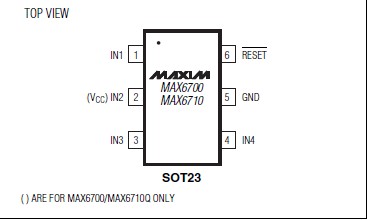

Pinout
SpecificationsVcc, IN_, RESET to GND.........................................-0.3V to +6V
Continuous RESET Current ...............................................20mA
Continuous Power Dissipation
6-Pin SOT23 (derate 8.7mW/°C above +70°C).........695.7mW
Operating Temperature Range .......................-40°C to +85°C
Storage Temperature Range ...................... .-65°C to +150°C
Junction Temperature....................................................+150°C
Lead Temperature (soldering, 10s) ..............................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and unctional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
DescriptionThe MAX6700/MAX6710 precision triple/quad voltage microprocessor (P) supervisory circuits monitor up to four system-supply voltages and assert a single reset if any supply voltage drops below its preset threshold. These MAX6700 significantly reduce system size and component count while improving reliability compared to separate ICs or discrete components.
A variety of factory-trimmed threshold voltages of MAX6700 are available to accommodate different supply voltages and tolerances with minimal external component requirements. The MAX6710 includes internally fixed options for monitoring 5.0V, 3.3V, 3.0V, 2.5V, and 1.8V supplies with -5% or -10% tolerances. The MAX6710 is also available with one to three adjustable threshold options to monitor voltages down to 0.62V. The MAX6700 monitors three voltages with adjustable thresholds down to 0.62V.
A single active-low output asserts when any monitored input falls below its associated threshold. The open-drain output has a weak internal pullup (10A) to IN2. For the MAX6710, reset remains low for the reset timeout period (140ms min) after all voltages rise above the selected threshold. The MAX6700 acts as a voltage detector with a propagation delay of 5s after all monitored voltages exceed their thresholds. The output remains valid as long as either IN2 or IN2 input voltage remains above 1V (MAX6710) or VCC is above 2V (MAX6700/MAX6710Q).
The MAX6700/MAX6710 are available in a small 6-pin SOT23 package and operate over the extended (-40°C to +85°C) temperature range.
MAX6700 Data Sheet
