Features: * Three Thermal-Diode Inputs and Three Thermistor Inputs
* Local Temperature Sensor
* 1°C Remote Temperature Accuracy (+60°C to +100°C)
* Temperature Monitoring Begins at POR for Fail- Safe System Protection
* ALERT and OVERT Outputs for Interrupts, Throttling, and Shutdown
* Small 16-Pin QSOP and 16-Pin TSSOP Packages
* 2-Wire SMBus InterfaceApplicationDesktop Computers Workstations

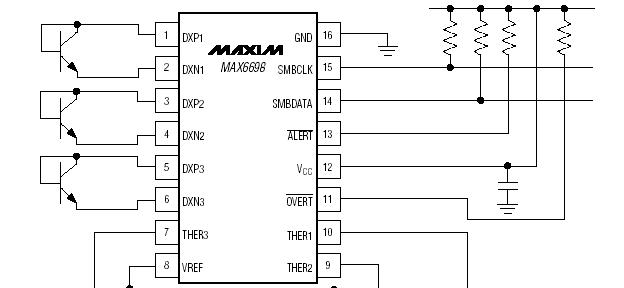

Notebook Computers ServersPinout
SpecificationsVCC, SCL, SDA, ALERT, OVERT to GND ................-0.3V to +6V
DXP_ to GND..........................................-0.3V to (VCC + 0.3V)
DXN_ to GND ...................................................-0.3V to +0.8V
THER_ to GND.....................................................-0.3V to +6V
VREF to GND........................................................-0.3V to +6V
SDA, ALERT, OVERT Current ...........................-1mA to +50mA
DXN Current .................................................................±1mA
Continuous Power Dissipation (TA = +70°C)
16-Pin QSOP
(derate 8.3mW/°C above +70°C) .............666.7mW(E16-1)
16-Pin TSSOP
(derate 9.4mW/°C above +70°C)..............754.7mW(U16-1)
ESD Protection (all pins, Human Body Model) ............±2000V
Operating Temperature Range ..................-40°C to +125°C
Junction Temperature.................................................+150°C
Storage Temperature Range ......................-60°C to +150°C
Lead Temperature (soldering, 10s) ............................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
DescriptionThe MAX6698EE precision multichannel temperature sensor monitors its own temperature, the temperatures of three external diode-connected transistors, and the temperatures of three thermistors. All temperature channels have programmable alert thresholds. Channels 1, 4, 5, and 6 also have programmable overtemperature thresholds. When the measured temperature of a channel exceeds the respective threshold, a status bit is set in one of the status registers. Two opendrain outputs of MAX6698EE , OVERT and ALERT, assert corresponding to these bits in the status register.
The 2-wire serial interface of MAX6698EE supports the standard system management bus (SMBus™) protocols: write byte, read byte, send byte, and receive byte for reading the temperature data and programming the alarm thresholds.
The MAX6698EE is specified for an operating temperature range of -40°C to +125°C and is available in 16-pin QSOP and 16-pin TSSOP packages.
MAX6698EE Data Sheet
