MAX6652

Workstations
Servers
Networking
Telecommunications

All Voltages Are Referenced to GND
Vcc........................................................................-0.3V to +6.0V
Voltage on 12VIN ..................................................-0.3V to +16V
All Other Pins ........................................................-0.3V to +6.0V
Output Current (SDA, ALERT) ...............................-1mA to +50mA
Junction Temperature .....................................................+150°C
Operating Temperature Range .......................-40°C to +125°C
Storage Temperature Range ..........................-65°C to +150°C
Continuous Power Dissipation (TA = +70°C)
10-Pin µMAX (derate 5.6mW/°C above +70°C) ............444mW
Lead Temperature (soldering, 10s) ...............................+300°C

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

The MAX6652 system supervisor monitors multiple power-supply voltages, including its own, and also features an on-board temperature sensor. Voltages and temperature of MAX6652 are converted to an 8-bit code using an analog-to-digital converter (ADC). A multiplexer automatically sequences hrough the oltage and temperature measurements. The digitized signals are then stored in registers and compared to the over/under threshold limits programmed over the 2-wire serial interface.

When a temperature measurement exceeds the programmed threshold, or when an input voltage falls outside the programmed voltage limits, the MAX6652 generates a latched interrupt output LERT. Three interrupt modes are available for temperature excursions: default mode, one-time interrupt mode, and comparator mode. TheALERT output is cleared, except for temperature interrupts enerated in comparator mode, by reading the interrupt status register (Table 5). The ALERT output can also be masked by writing to the appropriate bits in the interrupt mask register (Table 6) or by setting bit 1 of the configuration register (Table 4) to 0. The MAX6652 I2C™-compatible/SMBus nterface also responds to the SMB alert response address.

The 2-wire serial interface of MAX6652 accepts both I2C and standard system management bus (SMBus) write byte, read byte, send byte, and receive byte commands to program the alarm thresholds and to read voltage and temperature data. Voltage data is scaled so that when the nominal voltage is present at a pin (e.g., 3.3V for the 3.3VIN pin), the conversion result is equal to 3/4 of the ADC full-scale range or a decimal count of 192 (Table 3). The temperature data format of MAX6652  is 7 bits plus sign, with each data bit representing 1°C, in two's complement format (Table 2).

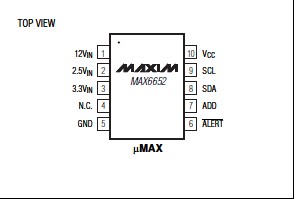

The MAX6652 has only one address pin, ADD. One of four different address codes can be selected by connecting the ADD pin to GND, VCC, SDA, or SCL. Whenever an I2C-compatible/SMBus transaction is initiated, the two LSBs of the slave address register are determined by connection, setting the chip address to one of four possible values. In addition, an address code can also be directly written to the serial address register. This code will overwrite the code set by connection of the ADD pin, until the MAX6652 is taken through a power-on reset cycle.

The MAX6652 features 60Hz or 50Hz line-frequency rejection for optimal performance. The device operates from +2.7V to +5.5V and is specified for operation from -40°C to +125°C. It is available in a tiny 10-pin MAX package.

I²C is a trademark of Philips Corp.
