MAX6460UT-T

Undervoltage Threshold :
Overvoltage Threshold :
Output Type :
Battery Backup Switching :
Power-Up Reset Delay (Typ) :
Manual Reset : Not Resettable
Mounting Style : SMD/SMT
Supply Voltage - Max : 28 V
Packaging : Reel
Number of Voltages Monitored : 1
Watchdog : No Watchdog
Maximum Operating Temperature : + 125 C
Package / Case : SOT-23
Supply Voltage - Min : 4 V
Maximum Power Dissipation : 696 mW
Monitored Voltage : 4 V to 28 V
Supply Current (Typ) : 6.5 uA


Features:

* Wide Supply Voltage Range, 4V to 28V
* Internal 2.25V ±2.5% Reference
* Low Current (3.5A, typ at 12V)
* Open-Drain N-Channel Output (28V Compliant)
* Internal Threshold Hysteresis Options (0.5%, 5%, 8.3%)
* Two IN-to-OUT Timeout Period Options (50s, 150ms)
* Internal Undervoltage Lockout
* Immune to Short Voltage Transients
* Small SOT23 Packages
* Few External Components
* Fully Specified from -40°C to +125°C


Application

Undervoltage Monitoring/Shutdown
Overvoltage Monitoring/Protection
Window Voltage Detection Circuitry
Multicell Battery-Stack Powered Equipment
Notebooks, eBooks
Automotive
Industrial
Telecom
Networking

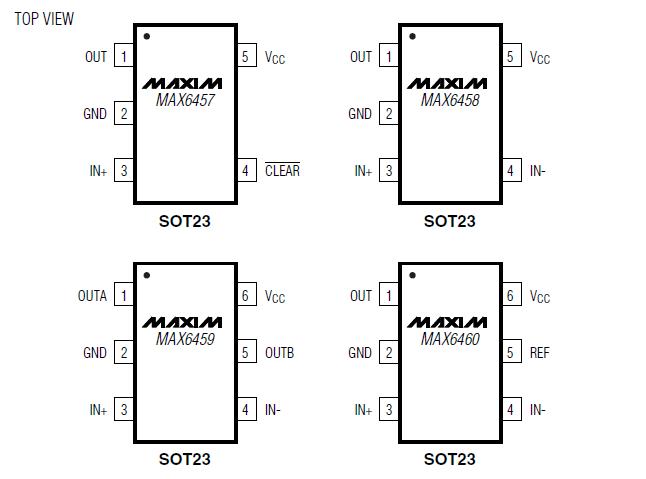

Pinout




Specifications

V_CC, OUT, OUTA, OUTB, CLEAR to GND .................-0.3V to +30.0V
IN+, IN- to GND............................................-0.3V to (VCC + 0.3V)
REF to GND.................-0.3V to the lower of +6V and (VCC + 0.3V)
Input Currents (V_CC, IN+, IN-) ............................................20mA
Sink Current (OUT, OUTA, OUTB)..........................................20mA
Continuous Power Dissipation (TA = +70°C)
5-Pin SOT23 (derate 7.1 mW/°C above +70°C)............571mW
6-Pin SOT23 (derate 8.7 mW/°C above +70°C)............696mW
Junction Temperature....................................................+150°C
Operating Temperature Range .....................-40°C to +125°C
Storage Temperature Range ........................-65°C to +150°C
Lead Temperature (soldering, 10s) ..............................+300°C


Description

The MAX6460UT-T high supply voltage, low-power voltage monitors operate over a 4V to 28V supply voltage range. Each device includes a precision bandgap reference, one or two low-offset voltage comparators, internal threshold hysteresis, power good or reset timeout options, and one or two high-voltage open-drain outputs. Two external resistors (three for window detection) set the trip threshold voltages.

The MAX6457 is a single voltage monitor for undervoltage or overvoltage detection. A logic-based clear input either latches the output for overvoltage applications or allows the device to operate in transparent mode. The MAX6458 includes two comparators (one overvoltage and one undervoltage) for window detection and a single output to indicate if the monitored input is within an adjustable voltage window. The MAX6459 includes dual overvoltage/ undervoltage comparators with two independent comparator outputs. Use the MAX6459 as a window comparator with separate undervoltage and overvoltage outputs or as two independent, single voltage monitors. The MAX6460UT-T includes a single comparator and an internal reference, and can also accept an external reference. The inverting and noninverting inputs of the comparator are externally accessible to support positive or negative voltage monitors and to configure the device for activehigh or active-low output logic.

The MAX6457/MAX6458 offer fixed timing options as a voltage detector with a 50s typical delay or as a reset circuit with a 90ms minimum reset timeout delay. The monitored input must be above the adjusted trip threshold (or within the adjusted voltage window for the MAX6458) for the selected timeout period before the output changes state. The MAX6459/MAX6460UT-T offer only a fixed 50s timeout period. Internal threshold hysteresis options (0.5%, 5%, and 8.3% for the MAX6457/MAX6458/MAX6459, and 0.5% for the MAX6460UT-T) reduce output chatter in noisesensitive applications. Each device is available in a small SOT23 package and specified over the extended temperature range of -40°C to +125°C.
