MAX6312

Features:

·Small 5-Pin SOT23 Package
·Precision Factory-Set VCC Reset Thresholds;
·Available in 0.1V Increments from 2.5V to 5V
·Immune to Short VCC Transients
·Guaranteed RESET Valid to VCC = 1V
·Guaranteed Over Temperature
·8µA Supply Current
·Factory-Set Reset Timeout Delay from
·1ms (min) to 1120ms (min)
·No External Components
·Manual Reset Input
·Under/Overvoltage Supply Monitoring


Application

·Portable Computers
·Computers
·Controllers
·Intelligent Instruments
·Portable/Battery-Powered Equipment
·Multivoltage Systems: 3V/5V, 5V/12V, 5V/24V
·Embedded Control Systems

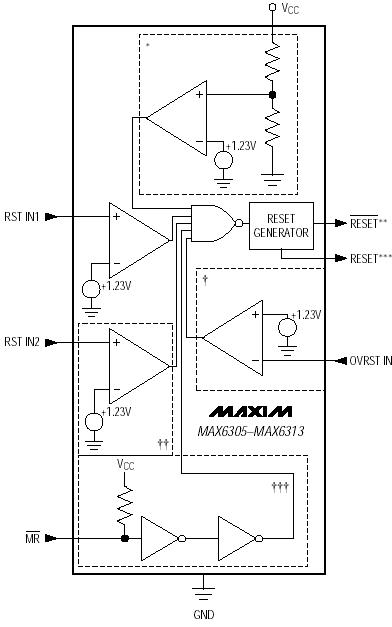

Pinout




Specifications

V_CC.........................................................................-0.3V to +6V
All Other Pins.............................................-0.3V to (V_CC + 0.3V)
Input/Output Current, All Pins ...........................................20mA
Rate of Rise, VCC ..........................................................100V/µs
Continuous Power Dissipation (TA = +70°C)
SOT23-5 (derate 7.1mW/°C above +70°C).................571mW
Operating Temperature Range..........................0°C to +70°C
Storage Temperature Range .......................-65°C to +160°C
Lead Temperature (soldering, 10sec) .........................+300°C


Description

The MAX6312 CMOS microprocessor (µP) supervisory circuits are designed to monitor more than one power supply. Ideal for monitoring both 5V and 3.3V in personal computer systems, the MAX6312 assert a system reset if any of the monitored supplies falls outside the programmed threshold. Low supply current (15µA) and a small package suit them for portable applications.

The MAX6312 is specifically designed to ignore fast transients on any monitored supply.

The MAX6312 is available in a SOT23-5 package, have factory-programmed reset thresholds from 2.5V to 5.0V (in 100mV increments), and feature four power-on reset timeout periods.
