Product Details

Description



Features:

 Low 20ppm/°C Temperature Coefficient over
  -40°C to +125°C Range
Very Low 1.5Vp-p Noise (0.1Hz to 10Hz)
±0.1% Initial Accuracy
±15mA Output Source and Sink Current
8V to 40V Input Voltage Range
Optional Noise Reduction and Voltage Trim
Excellent Transient Response
Low 20ppm/1000hr Long-Term Stability
Stable for All Capacitive Loads



Application

High-Accuracy Industrial and Process Control
ATE Equipment
Precision Current Sources

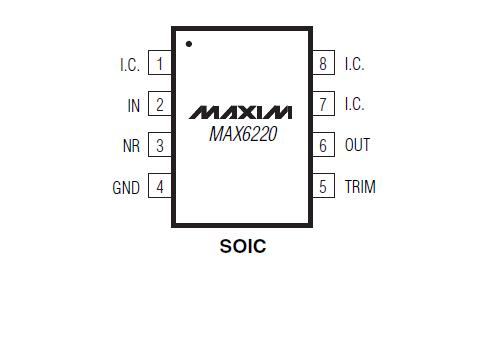

Pinout

  Connection Diagram


Specifications

(Voltages Referenced to GND)
IN..............................................................................-0.3V to +42V
OUT, TRIM ...............................................................-0.3V to +12V
NR ..............................................................................-0.3V to +6V
OUT Short-Circuit to GND Duration (VIN 12V)............Continuous
OUT Short-Circuit to GND Duration (VIN 42V) .........................5s
OUT Short-Circuit to IN Duration (VIN 12V) ..............Continuous
Continuous Power Dissipation (TA = +70°C)
8-Pin SO (derate 5.9mW/°C above +70°C) .......................471mW
Operating Temperature Range............................-40°C to +125°C
Storage Temperature Range ...............................-65°C to +150°C
Lead Temperature (soldering, 10s)....................................+300°C



Description

The MAX6220 is a low-noise, precision voltage reference with extremely low 20ppm/°C temperature coefficient over the automotive temperature range (-40°C to +125°C) and excellent ±0.1% initial accuracy. This device features buried-zener technology for low noise performance. The load-regulation specification is guaranteed for source and sink currents up to 15mA. Excellent line and load regulation and low output impedance at high frequency make the MAX6220 ideal for high-resolution data-conversion systems up to 16 bits. The MAX6220 is set for 2.5V, 4.096V, and 5.0V outputs.
