MAX6033

Features: Tiny 6-Pin SOT23 PackageUltra-Low Temperature Drift: 7ppm/°C (max)±0.04% Initial AccuracyStable with Capacitive LoadsLow 16VP-P Noise (0.1Hz to 10Hz) (2.5V Output)15mA Output Source CurrentLow 200mV Dropout VoltageLow 40A Quiescent CurrentWide 2.7V to 12.6V Supply VoltageExcellent Load R...

product image

MAX6033 Picture
See larger image
SeekIC No. : 004411482 Detail

MAX6033: Features: Tiny 6-Pin SOT23 PackageUltra-Low Temperature Drift: 7ppm/°C (max)±0.04% Initial AccuracyStable with Capacitive LoadsLow 16VP-P Noise (0.1Hz to 10Hz) (2.5V Output)15mA Output Source Curren...

MAX6033 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX6033
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Tiny 6-Pin SOT23 Package
Ultra-Low Temperature Drift: 7ppm/°C (max)
±0.04% Initial Accuracy
 Stable with Capacitive Loads
Low 16VP-P Noise (0.1Hz to 10Hz) (2.5V Output)
15mA Output Source Current
 Low 200mV Dropout Voltage
Low 40A Quiescent Current
Wide 2.7V to 12.6V Supply Voltage
Excellent Load Regulation: 0.001mV/mA


Application

Precision Regulators  A/D and D/A Converters
Power Supplies  Hard-Disk Drives
High-Accuracy Industrial and Process Control
Hand-Held Instruments

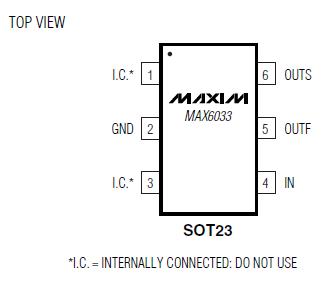

Pinout

Connection Diagram


Specifications

IN to GND ...............................................................-0.3V to +13V
OUTF, OUTS to GND................................................-..0.3V to +6V
Continuous Power Dissipation (TA = +70°C)
6-Pin SOT23 (derate 9.1mW/°C above +70°C)..............727mW
Operating Temperature Range ......................-40°C to +125°C
Storage Temperature Range .........................-65°C to +150°C
Maximum Junction Temperature ....................................+150°C
Lead Temperature (soldering, 10s) ....................................+300


Description

The MAX6033 ultra-high-precision series voltage reference features a low 7ppm/°C (max) temperature coefficient and a low dropout voltage (200mV, max). Low temperature drift and low noise make the MAX6033 ideal for use with high-resolution ADCs or DACs.

This device uses bandgap technology for low-noise performance and excellent accuracy. Laser-trimmed, highstability, thin-film resistors, and postpackage trimming guarantee excellent initial accuracy (±0.04%, max). The MAX6033 consumes only 40A of supply current and sources up to 15mA. Series mode references save system power and use minimal external components compared to two-terminal shunt references.

The MAX6033 is available in the miniature 6-pin SOT23 package and is offered over the automotive temperature range (-40°C to +125°C).
