MAX5934A

Features: · Provides Safe Hot Swap for +9V to +80V Power Supplies (MAX5934A)· Safe Board Insertion and Removal from a Live Backplane· Pin-Selectable Active-Low or Active-High Power- Good Output· Pin-Selectable Latched or Autoretry Fault Management· Programmable Foldback Current Limiting· High-Side...

product image

MAX5934A Picture
See larger image
SeekIC No. : 004411444 Detail

MAX5934A: Features: · Provides Safe Hot Swap for +9V to +80V Power Supplies (MAX5934A)· Safe Board Insertion and Removal from a Live Backplane· Pin-Selectable Active-Low or Active-High Power- Good Output· Pin...

MAX5934A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX5934A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Provides Safe Hot Swap for +9V to +80V Power Supplies (MAX5934A)
· Safe Board Insertion and Removal from a Live Backplane
· Pin-Selectable Active-Low or Active-High Power- Good Output
· Pin-Selectable Latched or Autoretry Fault Management
· Programmable Foldback Current Limiting
· High-Side Drive for an External N-Channel MOSFET
· Built-In Thermal Shutdown
· Undervoltage Lockout (UVLO)
· Pin-Selectable Duty-Cycle Options (0.94%, 1.88%, 3.75%)


Application

·Hot Board Insertion
·Electronic Circuit Breakers
·Industrial High-Side Switch/Circuit Breakers
·Network Routers and Switches
·24V/48V Industrial/Alarm Systems


Pinout

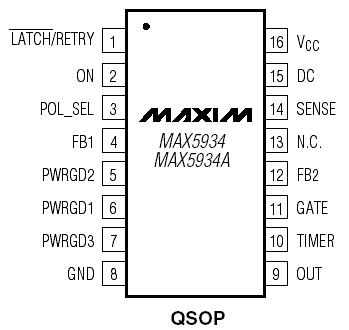

Connection Diagram


Specifications

(Voltages referenced to GND.)
VCC....................................................................-0.3V to +85V
SENSE, FB_, ON......................................-0.3V to (VCC + 0.3V)
TIMER, PWRGD_, DC, LATCH/RETRY, POL_SEL...-0.3V to +85V
GATE ................................................................-0.3V to +95V
OUT ..........................................(VGATE - 14V) to the lower of
(VGATE + 0.3V) and (VCC + 0.3V)
Maximum GATE Current ................................-50mA, +150mA
Maximum Current into Any Other Pin..........................±50mA
Continuous Power Dissipation (TA = +70°C)
16-Pin QSOP (derate 8.3mW/°C above +70°C).......667mW
Operating Temperature Range ..................-40°C to +85°C
Maximum Junction Temperature ..............................+150°C
Storage Temperature Range ...................-60°C to +150°C
ESD Rating (Human Body Model).................................2000V
Lead Temperature (soldering, 10s) .........................+300°C


Description

The MAX5934/MAX5934A are fully integrated hot-swap controllers for +9V to +80V (MAX5934A) positive supply rails. The MAX5934 is optimized for +33V to +80V power-supply rails. These devices allow for the safe insertion and removal of circuit cards into a live backplane without causing glitches on the backplane power-supply rail. The MAX5934/MAX5934A feature a programmable analog foldback current limit, programmable undervoltage lockout, and programmable output- voltage slew rate through an external n-channel MOSFET. In addition, if these devices remain in current limit for more than a programmable time, the external n-channel MOSFET latches off.

The MAX5934/MAX5934A feature pin-selectable PWRGD_ assertion polarity (active low or active high) and pin-selectable fault management (latched or autoretry). Other features include automatic restart after a circuit-breaker fault, selectable duty-cycle (DC) options, and thermal-shutdown mode for overtemperature protection.

The MAX5934/MAX5934A operate in the extended (-40°C to +85°C) temperature range and are available in a 16-pin QSOP package.
