MAX5858A

 10-Bit Resolution, Dual DAC
 300Msps Update Rate
 Integrated 4x/2x/1x Interpolating Filters
 Internal PLL Multiplier
 2.7V to 3.3V Single Supply
 Full Output Swing and Dynamic Performance at 2.7V Supply
 Superior Dynamic Performance
       73dBc SFDR at fOUT = 20MHz
       UMTS ACLR = 63dB at fOUT = 30.7MHz
 Programmable Channel Gain Matching
 Integrated 1.24V Low-Noise Bandgap Reference
 Single-Resistor Gain Control
 Interleave Data Mode
 Differential Clock Input Modes
 EV Kit Available-MAX5858AEVKit

Communications
   SatCom, LMDS, MMDS, HFC, DSL, WLAN,
   Point-to-Point Microwave Links
Wireless Base Stations
Direct Digital Synthesis
Instrumentation/ATE

AVDD, DVDD, PVDD to AGND, DGND, PGND ...........-0.3V to +4V
DA9DA0, DB9DB0, CW, REN, PLLF, PLLEN to AGND,
  DGND, PGND........................................................-0.3V to +4V
IDE to AGND, DGND, PGND...................-0.3V to (DVDD + 0.3V)
CLKXN, CLKXP to PGND .........................................-0.3V to +4V
OUTP_, OUTN_ to AGND.......................-1.25V to (AVDD + 0.3V)
CLK, LOCK to DGND...............................-0.3V to (DVDD + 0.3V)
REFR, REFO to AGND .............................-0.3V to (AVDD + 0.3V)
  AGND to DGND, DGND to PGND,
AGND to PGND....................................................-0.3V to +0.3V
Maximum Current into Any Pin
  (excluding power supplies) .........................................±50mA
Continuous Power Dissipation (T_A = +70°C)
  48-Pin TQFP-EP (derate 36.2mW/°C above +70°C) ..2.899W
Operating Temperature Range .......................-40°C to +85°C
Storage Temperature Range ........................-65°C to +150°C
Junction Temperature....................................................+150°C
Lead Temperature (soldering, 10s) ..............................+300°C

The MAX5858A dual, 10-bit, 300Msps digital-to-analog converter (DAC) provides superior dynamic performance in wideband communication systems. The MAX5858A integrates two 10-bit DAC cores, 4x/2x/1x programmable digital interpolation filters, phase-lock loop (PLL) clock multiplier, and a 1.24V reference. The MAX5858A supports
single-ended and differential modes of operation. The MAX5858A dynamic performance is maintained over the entire power-supply operating range of 2.7V to 3.3V. The analog outputs support a compliance voltage of -1.0V to +1.25V.

The 4x/2x/1x programmable interpolation filters feature excellent passband distortion and noise performance. Interpolating filters minimize the design complexity of analog reconstruction filters while lowering the data bus and the clock speeds of the digital interface. The PLL multiplier generates all internal, synchronized highspeed
clock signals for interpolating filter operation and DAC core conversion. The internal PLL helps minimize system complexity and lower cost. To reduce the I/O pin count, the DAC can also operate in interleave data mode. This allows the MAX5858A to be updated on a single 10-bit bus.

The MAX5858A features digital control of channel gain matching to within ±0.4dB in sixteen 0.05dB steps. Channel matching improves sideband suppression in analog quadrature modulation applications. The onchip 1.24V bandgap reference includes a control amplifier that allows external full-scale adjustments of both channels through a single resistor. The internal reference can be disabled and an external reference can be applied for high-accuracy applications.

The MAX5858A features full-scale current outputs of 2mA to 20mA and operates from a 2.7V to 3.3V single supply. The DAC supports three modes of power-control operation: normal, low-power standby, and complete power-down. In power-down mode, the operating current is reduced to 1A.

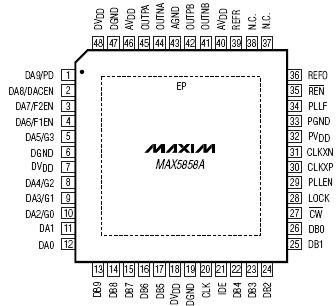

The MAX5858A is packaged in a 48-pin TQFP with exposed paddle (EP) for enhanced thermal dissipation and is specified for the extended (-40°C to +85°C) operating
temperature range.
