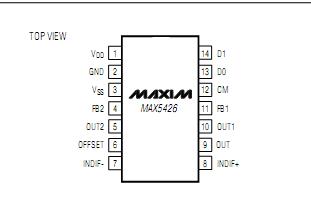

MAX5426

V_DDto GND............................................................-0.3V to +17V
V_SSto GND.............................................................-17V to +0.3V
D0, D1 to GND............................................-0.3V to (V_DD+ 0.2V)
D0, D1 to GND (V_DD> +6V)...................................-0.3V to +6.0V
All Other Pins to GND.........................(V_SS- 0.3V) to (V_DD+ 0.2V)
Maximum Current Into V_DD, V_SS, D1, D0..........................±50mA
Maximum Current from OUT1 to CM or OUT2.................±0.72mA
Maximum Current from OUT1 to INDIF- or OUT..............±0.72mA
Maximum Current from OUT2 to INDIF+ or OFFSET........±0.72mA
Continuous Power Dissipation (T_A= +70°C)
14-Pin TSSOP (derate 9.1mW/°C above +70°C)..............727mW
Operating Temperature Range...........................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range.............................-60°C to +150°C

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functionaloperation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

The MAX5426 is a precision resistor network optimized for use with programmable instrumentation amplifiers. The MAX5426 operates from dual ±5V to ±15V supplies and consumes less than 40µA of supply current. Designed to be used in the traditional three op amp instrumentation amplifier topology, this device provides noninverting gains of 1, 2, 4, and 8 that are accurate to 0.025% (A-grade), 0.09% (B-grade), or 0.5% (C-grade) over the extended temperature range (-40°Cto +85°C). The MAX5426 is available in the 6.4mm ✕5mm 14-pin TSSOP package.
