MAX5352

Features:

© 12-Bit DAC with Configurable Output Amplifier
© +5V Single-Supply Operation (MAX5352) +3.3V Single-Supply Operation (MAX5353)
© Low Supply Current: 0.28mA Normal Operation 2A Shutdown Mode
© Available in 8-Pin MAX
© Power-On Reset Clears DAC Output to Zero
© SPI/QSPI and Microwire Compatible
© Schmitt-Trigger Digital Inputs for Direct Optocoupler Interface
© +3.3V MAX5353 Directly Interfaces with +5V Logic


Application

Industrial Process Controls
Automatic Test Equipment
Digital Offset and Gain Adjustment
Motion Control
Remote Industrial Controls
Microprocessor-Controlled Systems

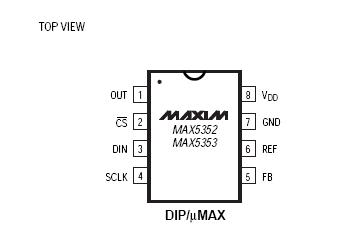

Pinout




Specifications

VDD to GND...............................................................-0.3V, +6V
REF, OUT, FB to GND ................................-0.3V to (VDD + 0.3V)
Digital Inputs to GND ............................................-0.3V to +6V
Continuous Current into Any Pin...................................±20mA
Continuous Power Dissipation (TA = +70°C)
Plastic DIP (derate 9.09mW/°C above +70°C) ...........727mW
MAX (derate 4.10mW/°C above +70°C) ...................330mW
CERDIP (derate 8.00mW/°C above +70°C).................640mW
Operating Temperature Ranges
MAX5352_C_A/MAX5353_C_A...........................0°C to +70°C
MAX5352_E_A/MAX5353_E_A .......................-40°C to +85°C
MAX5352BMJA/MAX5353BMJA .....................-55°C to +125°C
Storage Temperature Range ......................-65°C to +150°C
Lead Temperature (soldering, 10sec) ........................+300°C


Description

The MAX5352/MAX5353 combine a low-power, voltageoutput, 12-bit digital-to-analog converter (DAC) and a precision output amplifier in an 8-pin MAX or DIP package. The MAX5352 operates from a single +5V supply, and the MAX5353 operates from a single +3.3V supply. Both devices draw less than 280A of supply current.

The output amplifier's inverting input is available to the user, allowing specific gain configurations, remote sensing, and high output current capability. This makes the MAX5352/MAX5353 ideal for a wide range of applications, including industrial process control. Other features include a software shutdown and power-on reset.

The MAX5352 is compatible with SPI™/QSPI™ and Microwire™. The MAX5352 has a double-buffered input, organized as an input register followed by a DAC register. A 16-bit serial word loads data into the input register.The DAC register can be updated independently or simultaneously with the input register. All logic inputs are TTL/CMOS-logic compatible and buffered with Schmitt triggers to allow direct interfacing to optocouplers.
