Features: · +2.7V to +5.5V Single-Supply Operation
· Low Supply Current: 1.3mA
· Low-Power Shutdown Mode 0.54mA (MAX5259) 0.80mA (MAX5258)
· ±1LSB DNL (max)
· ±1LSB INL (max)
· Ground to VDD Reference Input Range
· Output Buffer Amplifiers Swing Rail-to-Rail
· 10MHz Serial Interface, SPI, QSPI (CPOL = CPHA = 0 or CPOL = CPHA = 1), and MICROWIRECompatible
· Double-Buffered Registers for Synchronous Updating
· Serial Data Output for Daisy-Chaining
· Ultra-Small 16-Pin QSOP PackageApplication·Digital Gain and Offset Adjustment
·Programmable Attenuators
·Programmable Current Sources

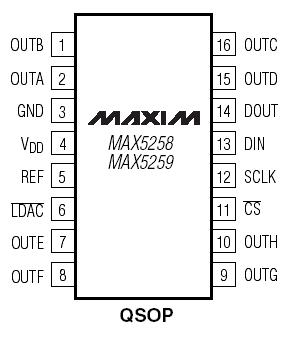

·Portable InstrumentsPinout
SpecificationsVDD to GND....................................................................-0.3V to +6V
DIN, DOUT, CS, SCLK, LDAC to GND...............................-0.3V to +6V
REF to GND...................................................... -0.3V to (VDD + 0.3V)
OUT_ to GND ................................................................ -0.3V to VDD
Maximum Current into Any Pin..................................................50mA
Continuous Power Dissipation (TA = +70°C)
16-Pin Plastic QSOP (derate 8.3mW/°C about +70°C)........667mW
Operating Temperature Range ..............................-40°C to +85°C
Storage Temperature Range ...............................-65°C to +150°C
Lead Temperature (soldering, 10s) .....................................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
DescriptionThe MAX5258/MAX5259 are +3V/+5V single-supply, digital serial-input, voltage-output, 8-bit octal digital-toanalog converters (DACs). Internal precision buffers swing Rail-to-Rail®, and the reference input range extends from ground to the positive supply. The +5V (MAX5258) and the +3V (MAX5259) feature a 10µA (max) shutdown mode.
The MAX5258 is double-buffered. A 16-bit input shift register is followed by eight 8-bit input registers and eight 8-bit DAC registers. The 16-bit serial word consists of two "don't care" bits, three address bits, three control bits, and eight data bits. The input and DAC registers can both be updated independently or simultaneously with a single software command. The asynchronous control input (LDAC) provides simultaneous updating of all eight DAC registers.
The MAX5258 is compatible with SPI™, QSPI™ (CPOL = CPHA = 0 or CPOL = CPHA = 1), and MICROWIRE™. A buffered digital data output allows daisy-chaining of serial devices.
The MAX5258/MAX5259 are available in a 16-pin QSOP package.
