MAX5222

Features: *Operates from a Single +2.7V to +5.5V Supply*Tiny 8-Pin SOT23 Package (3mm ✕ 3mm)*Dual Buffered Voltage Output*Low Power Consumption 0.4mA Operating Current <1A Shutdown Current*Programmable Shutdown Mode*25MHz, 3-Wire Serial Interface*SPI, QSPI, and MICROWIRE CompatibleApplic...

product image

MAX5222 Picture
See larger image
SeekIC No. : 004411154 Detail

MAX5222: Features: *Operates from a Single +2.7V to +5.5V Supply*Tiny 8-Pin SOT23 Package (3mm ✕ 3mm)*Dual Buffered Voltage Output*Low Power Consumption 0.4mA Operating Current <1A Shutdown Current...

MAX5222 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX5222
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Operates from a Single +2.7V to +5.5V Supply
* Tiny 8-Pin SOT23 Package (3mm ✕ 3mm)
* Dual Buffered Voltage Output
* Low Power Consumption 0.4mA Operating Current <1A Shutdown Current
* Programmable Shutdown Mode
* 25MHz, 3-Wire Serial Interface
* SPI, QSPI, and MICROWIRE Compatible


Application

Digital Gain and Offset Adjustment
Programmable Current Source
Programmable Voltage Source
Power-Amp Bias Control
VCO Tuning


Pinout

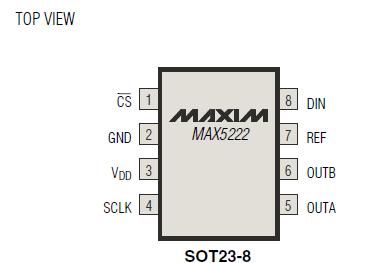

Connection Diagram


Specifications

VDD to GND................................................................ -0.3V to +6V
All Other Pins to GND (Note 1)..................... -0.3V to (VDD + 0.3V)
Continuous Power Dissipation (TA = +70°C)
8-Pin SOT23 (derate 8.7mW/°C above +70°C)...............696mW
Operating Temperature Range ..........................-40°C to +85°C
Junction Temperature.......................................................+150°C
Storage Temperature Range ............................-65°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C


Description

The MAX5222 contains two 8-bit, buffered, voltage-output digital-to-analog converters (DAC A and DAC B) in a small 8-pin SOT23 package. Both DAC outputs can source and sink 1mA to within 100mV of ground and VDD. The MAX5222 operates with a single +2.7V to +5.5V supply.

The MAX5222 uses a 3-wire serial interface, which operates at clock rates up to 25MHz and is compatible with SPI™, QSPI™, and MICROWIRE™ interface standards. The serial input shift register is 16 bits long and consists of 8 bits of DAC input data and 8 bits for DAC selection and shutdown control. DAC registers can be loaded independently or in parallel at the positive edge of CS.

The MAX5222's ultra-low power consumption and tiny 8-pin SOT23 package make it ideal for portable and battery-powered applications. Supply current is less than 1mA and drops below 1A in shutdown mode. In addition, the reference input is disconnected from the REF pin during shutdown, further reducing the system's total power consumption.
