MAX5167

Features: 32-Channel Sample/HoldOutput Clamps on Each Channel0.01% Accuracy of Acquired Signal0.01% Linearity ErrorFast Acquisition Time: 2.5µsLow Droop Rate: 1mV/sLow Hold Step: 0.25mVWide Output Voltage Range: +7V to -4VApplicationAutomatic Test Systems (ATE)Industrial Process ControlsArbi...

product image

MAX5167 Picture
See larger image
SeekIC No. : 004411132 Detail

MAX5167: Features: 32-Channel Sample/HoldOutput Clamps on Each Channel0.01% Accuracy of Acquired Signal0.01% Linearity ErrorFast Acquisition Time: 2.5µsLow Droop Rate: 1mV/sLow Hold Step: 0.25mVWide Ou...

MAX5167 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX5167
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 32-Channel Sample/Hold
 Output Clamps on Each Channel
 0.01% Accuracy of Acquired Signal
 0.01% Linearity Error
 Fast Acquisition Time: 2.5µs
 Low Droop Rate: 1mV/s
 Low Hold Step: 0.25mV
 Wide Output Voltage Range: +7V to -4V


Application

Automatic Test Systems (ATE)
Industrial Process Controls
Arbitrary Function Generators
Avionics Equipment


Pinout

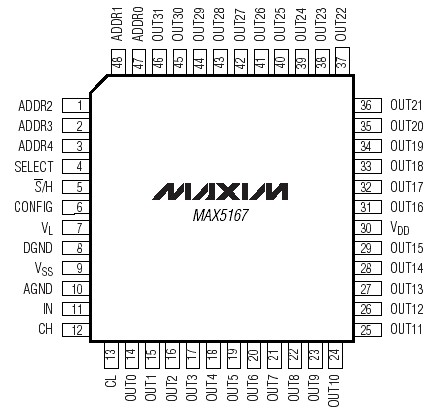

Connection Diagram


Specifications

VDD to AGND.......................................................-0.3V to +11.0V
VSS to AGND .........................................................-6.0V to +0.3V
VDD to VSS ....................................................................+15.75V
VL to DGND ..........................................................-0.3V to +6.0V
VL to AGND ...........................................................-0.3V to +6.0V
DGND to AGND......................................................-0.3V to +2.0V
IN, OUT_ ....................................................................VSS to VDD
Logic Inputs to DGND ...........................................-0.3V to +6.0V
CH, CL to AGND ..................................................-6.0V to +11.0V
Maximum Current into CL and CH ...................................± 80mA
Maximum Current into Out_.............................................± 10mA
Maximum Current into Logic Inputs ................................± 20mA
Continuous Power Dissipation (TA = +70°C)
   48-Pin TQFP (derate 12.5mW/°C above +70°C)........1000mW
Operating Temperature Ranges
   MAX5167_CCM ..................................................0°C to +70°C
   MAX5167_ECM................................................-40°C to +85°C
Storage Temperature Range ...........................-65°C to +150°C
Lead Temperature (soldering, 10s) ...............................+300°C


Description

The MAX5167 contains 32 sample-and-hold amplifiers driven by a single multiplexed input. The control logic addressing the outputs is a simple 5-wire input to the multiplexer. Additional logic allows two devices to function as a single 64-channel unit. Clamping diodes on each output allows clamping between two external reference voltages. The MAX5167 is available with an output impedance of 50Ω, 500Ω, or 1kΩ.

The MAX5167 operates with +10V and -5V supplies, and a separate +5V digital logic supply. Manufactured with a proprietary BiCMOS process, it provides high
accuracy, fast acquisition time, low droop rate, and a low hold step. The MAX5167 has a typical linearity error of less than 0.01% and can accurately acquire an 8V step input signal to 0.01% accuracy in 2.5µs within the +7V to -4V input signal range. Transitions from sample mode to hold mode result in only a 0.5mV error. While in hold mode, the output voltage slowly droops at a rate of 1mV/s.

The MAX5167 is available in a 48-pin TQFP package and is specified for both the commercial (0°C to +70°C) and extended-industrial (-40°C to +85°C) temperature ranges.
