Features: . Quad, 8-Channel Sample/Hold
. 0.01% Accuracy of Acquired Signal
. 0.01% Linearity Error
. Fast Acquisition Time: 2.5s
. Low Droop Rate: 1mV/sec
. Low Hold Step: 0.25mV
. Wide Output Voltage Range: +7V to -4V
Application.Automatic Test Systems (ATE)
.Industrial Process Controls
.Arbitrary Function Generators

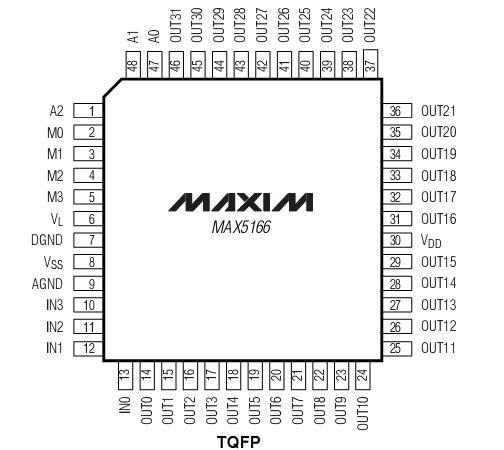

.Avionics EquipmentPinout
SpecificationsVDD to AGND.......................................................-0.3V to +11.0V
VSS to AGND.........................................................-6.0V to +0.3V
VDD to VSS ....................................................................+15.75V
VL to DGND...........................................................-0.3V to +6.0V
VL to AGND...........................................................-0.3V to +6.0V
DGND to AGND.....................................................-0.3V to +2.0V
IN_ to AGND..............................................................VSS to VDD
A_, M_ to DGND...................................................-0.3V to +6.0V
Maximum Current into Output Pin..................................±10mA
Maximum Current into A_, M_........................................±20mA
Continuous Power Dissipation (TA = +70°C)
48-Pin TQFP (derate 12.5mW/°C above +70°C)................1W
Operating Temperature Ranges
MAX5166_CCM .................................................0°C to +70°C
MAX5166_ECM...............................................-40°C to +85°C
Storage Temperature Range........................-65°C to +150°C
Lead Temperature (soldering, 10sec)...........................+300°C
DescriptionThe MAX5166 contains four 1-to-8 multiplexers and 32 sample/hold amplifiers. The sample/hold amplifiers are organized into four octal sample/holds with separate inputs and independent TTL/CMOS-compatible hold enables for each octal set. Additional 3-bit TTL/CMOS- compatible address logic selects the 1-to-8 multiplexer channel. The MAX5166 is available with an output imped-ance of 50?, 500?, or 1k?, allowing output filtering.
The MAX5166 operates with +10V and -5V supplies, and a separate +5V digital logic supply. Manufactured with a proprietary BiCMOS process, it provides high accuracy, fast acquisition time, low droop rate, and a low hold step. The device acquires 8V step input sig- nals to 0.01% accuracy in 2.5s. Transitions from sam- ple mode to hold mode result in only 0.5mV of error.
While in hold mode, the output voltage slowly droops at a rate of 1mV/sec. The MAX5166 is available in a 48-pin TQFP package.
