MAX5161

VDD to GND..............................................................-0.3V to +6V
CS, INC,U/ Dto GND ...............................................  -0.3V to +6V
H, L, W to GND.......................................... -0.3V to (VDD + 0.3V)
Input and Output Latchup Immunity ..............................±200mA
Maximum Continuous Current into H, L, and W
MAX516_ _ E _ _..............................................................   ±1mA
Continuous Power Dissipation (TA = +70°C)
6-Pin SOT23 (derate 8.7mW/°C above +70°C).............   696mW
8-Pin MAX (derate 4.1mW/°C above +70°C) ..............   330mW
Operating Temperature Range .......................... -40°C to +85°C
Storage Temperature Range .............................-65°C to +150°C
Lead Temperature (soldering, 10sec) ............................ +300° C

The MAX5160/MAX5161 linear-taper digital potentiometers perform the same function as a mechanical potentiometer or a variable resistor. They consist of a fixed resistor and a wiper contact with 32 tap points that are digitally controlled by three lines for the 8-pin MAX5160 or by two lines for the 6-pin MAX5161. These parts are ideal for applications requiring digitally controlled resistors. Three resistance values are available for each part type: 50k½, 100k½, and 200k½. A nominal resistor temperature coefficient of 50ppm/°C end-to-end and only 5ppm/°C ratiometric makes the MAX5161 ideal for applications requiring a low-temperature- coefficient variable resistor, such as low-tempco, adjustable-gain circuit configurations.

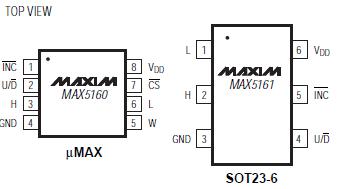

The MAX5160 is available in an 8-pin MAX package, and the MAX5161 is available in a 6-pin SOT23 package. Both devices are guaranteed over the extendedindustrial temperature range (-40°C to +85°C).
