MAX5115

Nonvolatile Registers Initialize DACs to Stored
  States
+2.7V to +5.25V Single-Supply Operation
Quad 8-Bit DACs with Independent High and Low
   Reference Inputs
Rail-to-Rail Output Buffers
Low 200µA per DAC Supply Current
Power-Down Mode Reduces Supply Current to
   25µA (max)
400kHz, I₂ C-Compatible, 2-Wire Serial Interface

Asynchronous MUTEInput (MAX5116)
Small 16-/20-Pin QSOP Packages

V_DD, A0, A1, A2, A3, SCL, SDA, MUTE.....................-0.3V to +6.0V
OUT0, OUT1, OUT2, OUT3, REFH0, REFH1, REFH2,
REFH3, REFH, REFL0, REFL1, REFL2, REFL3,
REFL.............................................................-0.3V to (V_DD+ 0.3V)
Maximum Current into Any Pin...........................................±50mA

Power Dissipation (T_A= +70°C)
16-Pin QSOP (derate 8.3mW/°C above +70°C)................667mW
20-Pin QSOP (derate 9.1mW/°C above +70°C)................727mW
Operating Temperature Range............................-40°C to +85°C
Junction Temperature .....................................................+150°C
Storage Temperature Range.............................-60°C to +150°C
Lead Temperature (soldering, 10s)..................................+300°C

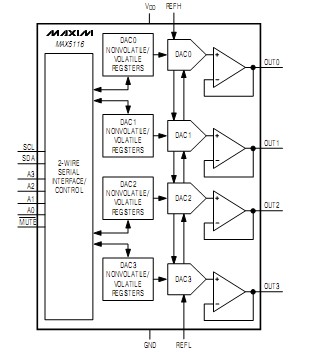

The MAX5115/MAX5116 quad, 8-bit, digital-to-analog converters (DACs) feature nonvolatile registers. These nonvolatile registers store the DAC operating modesand output states, allowing the DACs to initialize tospe cified configurations at power-up. Precision on-chip output buffers swing rail-to-rail, andprovide 8µs settling time. The I2C*-compatible, 2-wireserial interface allows for a maximum clock frequencyof 400kHz.

The MAX5115 has independent high and low referenceinputs allowing maximum output voltage range flexibili-ty. The MAX5116 has single high and low referenceinputs for all DACs to minimize trace count and save board space. The reference rails accept voltage inputs that range from ground to the positive supply rail.The devices operate from a single +2.7V to +5.25V sup-ply and consume 200µA per DAC. A software-controlled power-down mode decreases supply current to less than 25µA. A software-controlled mute mode sets each DAC, or both DACs simultaneously, to their respective REFL_ voltages. The MAX5116 also includes an asyn- chronous MUTE input, that drives all DAC outputs simul- taneously to their respective REFL_ voltages. The MAX5115 is available in a 20-pin QSOP, and the MAX5116 is available in a 16-pin QSOP package. Both devices are specified for operation over the extended (-40°C to +85°C) temperature range.
