MAX5084

Features: ·Wide Operating Input Voltage Range (6.5V to 65V)·Thermally Enhanced 3mm x 3mm 6-Pin TDFN Package Dissipates 1.905W at +70°C·Guaranteed 200mA Output Current·50µA No-Load Supply Current·Preset 3.3V, 5.0V, or Adjustable (from 2.54V to 11V) Output Voltage·Remote Load Sense·Thermal and...

product image

MAX5084 Picture
See larger image
SeekIC No. : 004411070 Detail

MAX5084: Features: ·Wide Operating Input Voltage Range (6.5V to 65V)·Thermally Enhanced 3mm x 3mm 6-Pin TDFN Package Dissipates 1.905W at +70°C·Guaranteed 200mA Output Current·50µA No-Load Supply Curre...

MAX5084 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX5084
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Wide Operating Input Voltage Range (6.5V to 65V)
·Thermally Enhanced 3mm x 3mm 6-Pin TDFN Package Dissipates 1.905W at +70°C
·Guaranteed 200mA Output Current
·50µA No-Load Supply Current
·Preset 3.3V, 5.0V, or Adjustable (from 2.54V to 11V) Output Voltage
·Remote Load Sense
·Thermal and Short-Circuit Protection
·-40°C to +125°C Operating Temperature Range
·SET Input for Adjustable Output Voltage
·Enable Input


Application

·Automotive
·Industrial
·Home Security
·Telecom/Networking


Pinout

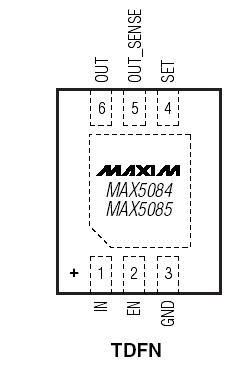

Connection Diagram


Specifications

IN to GND ...............................................................-0.3V to +80V
EN to GND...............................................................-0.3V to +80V
SET, OUT, OUT_SENSE
to GND.....................-0.3V to the lesser of (VIN + 0.3V) or +13.2V
OUT_SENSE to OUT................................................-0.3V to +0.3V
Short-Circuit Duration (VIN 65V)..............................Continuous
Maximum Current into Any Pin (except IN and OUT).........±20mA
Continuous Power Dissipation (TA = +70°C)
6-Pin TDFN-EP (derate 23.8mW/°C above +70°C) ..1904.8mW*
Thermal Resistance:
JA..................................................................................42°C/W
JC.................................................................................8.5°C/W
Operating Temperature Range .......................-40°C to +125°C
Junction Temperature......................................................+150°C
Storage Temperature Range ..........................-65°C to +150°C
Lead Temperature (soldering, 10s) ................................+300°C
*As per JEDEC51 Standard (Multilayer Board).


Description

The MAX5084/MAX5085 high-voltage linear regulators operate from an input voltage range of 6.5V to 65V and deliver up to 200mA of output current. These devices consume only 50µA (typ) of quiescent current with no load and 6µA (typ) in shutdown (EN pulled low). Both devices include a SET input, which when connected to ground, selects a preset output voltage of 5V (MAX5084) or 3.3V (MAX5085). Alternatively, the output voltage can be adjusted from 2.54V to 11V by connecting the SET pin to the regulator's output through a resistive divider network. The MAX5084/ MAX5085 also include an OUT_SENSE pin, which allows remote voltage sensing right at the load, thus eliminating the voltage drop caused by the line impedance. Both devices are short-circuit protected and include thermal shutdown.

The MAX5084/MAX5085 operate over the -40°C to +125°C automotive temperature range and are available in a space-saving 3mm x 3mm thermally enhanced 6-pin TDFN package.
