Features: +4.75V to +5.5V or +8V to +28V Input Voltage Range
Up to 60A Output Current
Internal Voltage Regulator for a +12V or +24V Power Bus
True Differential Remote Output Sensing
Two Out-Of-Phase Controllers Reduce Input Capacitance Requirement and Distribute Power Dissipation
Average-Current-Mode Control Superior Current Sharing Between Individual Phases and Paralleled Modules Accurate Current Limit Eliminates MOSFET and
Inductor Derating
Limits Reverse-Current Sinking in Paralleled Modules
Integrated 4A Gate Drivers
Selectable Fixed Frequency 250kHz or 500kHz per Phase (Up to 1MHz for Two Phases)
Fixed (MAX5038A) or Adjustable (MAX5041A)Output Voltages
External Frequency Synchronization from 125kHz to 600kHz
Internal PLL with Clock Output for Paralleling Multiple DC-DC Converters
Thermal Protection
28-Pin SSOP PackageApplicationServers and Workstations
Point-of-Load High-Current/High-Density
Telecom DC-DC Regulators
Networking Systems
Large-Memory Arrays
RAID Systems

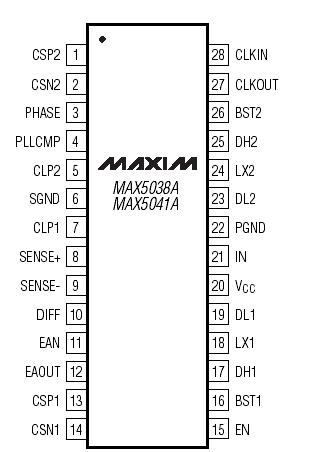

High-End Desktop ComputersPinout
SpecificationsIN to SGND.............................................................-0.3V to +30V
BST_ to SGND........................................................-0.3V to +35V
DH_ to LX_ ...............................-0.3V to [(VBST_ - VLX_) + 0.3V]
DL_ to PGND..............................................-0.3V to (VCC + 0.3V)
BST_ to LX_ .............................................................-0.3V to +6V
VCC to SGND............................................................-0.3V to +6V
VCC to PGND............................................................-0.3V to +6V
SGND to PGND .....................................................-0.3V to +0.3V
All Other Pins to SGND................................-0.3V to (VCC + 0.3V)
Continuous Power Dissipation (TA = +70°C)
28-Pin SSOP (derate 9.5mW/°C above +70°C) .............762mW
Operating Temperature Range ..........................-40°C to +85°C
Maximum Junction Temperature ......................................+150°C
Storage Temperature Range ...........................-60°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
DescriptionThe MAX5038A/MAX5041A dual-phase, PWM controllers provide high-output-current capability in a compact package with a minimum number of external components. The MAX5038A/MAX5041A utilize a dual-phase, average-current-mode control that enables optimal use of low RDS(ON) MOSFETs, eliminating the need for external heatsinks even when delivering high output currents. Differential sensing enables accurate control of the output voltage, while adaptive voltage positioning provides optimum transient response. An internal regulator enables operation with input voltage ranges of +4.75V to +5.5V or +8V to +28V. The high switching frequency, up to 500kHz per phase, and dual-phase operation allow the use of low-output inductor values and input capacitor values. This accommodates the use of PC boardembedded planar magnetics achieving superior reliability, current sharing, thermal management, compact size, and low system cost.
The MAX5038A/MAX5041A also feature a clock input (CLKIN) for synchronization to an external clock, and a clock output (CLKOUT) with programmable phase delay (relative to CLKIN) for paralleling multiple phases. The MAX5038A/MAX5041A also limit the reverse current in case the bus voltage becomes higher than the regulated output voltage. The MAX5038A offers a variety of factory- trimmed preset output voltages (see Selector Guide) and the MAX5041A offers an adjustable output voltage between +1.0V to +3.3V.
The MAX5038A/MAX5041A operate over the extended temperature range (-40°C to +85°C) and are available in a 28-pin SSOP package. Refer to the MAX5037A and MAX5065/MAX5067 data sheets for a VRM 9.0/VRM 9.1- compatible, VID-controlled, adjustable output voltage controller in a 44-pin MQFP/thin QFN or 28-pin SSOP package.
