MAX5012

Features: · 12-Bit, 100Msps DAC· ECL-Compatible Inputs· Low Power: 600mW· 1/2LSB DNL· 40MHz Multiplying Bandwidth· Extended-Industrial Temperature Range· Superior Performance over AD9712: Improved Settling Time: 13ns Improved Glitch Energy: 15pV-s Master/Slave LatchesApplication·Fast-Frequency-Hop...

product image

MAX5012 Picture
See larger image
SeekIC No. : 004411016 Detail

MAX5012: Features: · 12-Bit, 100Msps DAC· ECL-Compatible Inputs· Low Power: 600mW· 1/2LSB DNL· 40MHz Multiplying Bandwidth· Extended-Industrial Temperature Range· Superior Performance over AD9712: Improved S...

MAX5012 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX5012
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 12-Bit, 100Msps DAC
· ECL-Compatible Inputs
· Low Power: 600mW
· 1/2LSB DNL
· 40MHz Multiplying Bandwidth
· Extended-Industrial Temperature Range
· Superior Performance over AD9712: Improved Settling Time: 13ns Improved Glitch Energy: 15pV-s Master/Slave Latches


Application

·Fast-Frequency-Hopping Spread-Spectrum
·Radios
·Direct-Sequence Spread-Spectrum Radios
·Digital RF/IF Modulation
·Microwave and Satellite Modems
·Test and Measurement Instrumentation


Pinout

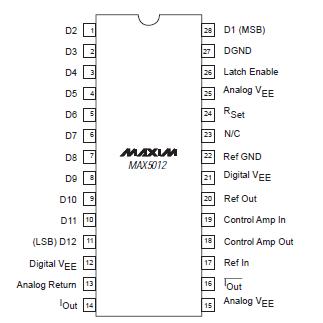

Connection Diagram


Specifications

Negative Supply Voltage (VEE) ...................................... .......-7V
A/D Ground Voltage Differential.................................. ........0.5V
Input Voltages
Digital Input Voltage (D1D12, Latch Enable) .......... ..0V to VEE
Control Amp Input Voltage Range........................... ....0V to -4V
Reference Input Voltage Range (VREF) ................. .-3.7V to VEE
Output Currents
Internal-Reference Output Current .........................  ........500A
Control-Amplifier Output Current..............................   ....±2.5mA
Continuous Power Dissipation
Plastic DIP (derate 14.29mW/°C above +70°C) ..........  ...1.14W
PLCC (derate 10.53mW/°C above +70°C) ...................   842mW
Operating Temperature Range ...........................-40°C to +85°C
Junction Temperature......................................................+150°C
Lead Temperature (soldering, 10sec) .............................+300°C
Storage Temperature Range ................................-65 to +150°C


Description

The MAX5012 is a 12-bit, 100Msps digital-to-analog converter (DAC) designed for digital modulation, direct digital synthesis, high-resolution imaging, and arbitrarywaveform- generation applications. This device is pinfor- pin compatible with the AD9712 with significantly improved settling time and glitch-energy performance.

The MAX5012 is an ECL-compatible device. It features a fast 13ns settling time and low 15pV-s glitch impulse energy, which results in excellent spurious-free dynamic range characteristics.

The MAX5012 is available in a 28-pin plastic DIP or PLCC package in the -40°C to +85°C extended-industrial temperature range.
