Features: Guaranteed Minimum 250mA Load Current
Accurate Current Limit
Preset Output Voltages: 1.8V/2.5V/2.8V/3.0V/3.3V
2.5V to 5.5V Supply Voltage Range
Adjustable Soft-Start
Low Dropout Voltage
Thermal Shutdown
Reverse-Current Protection
Shutdown Output Discharge (MAX4835)
Low 90A Supply Current
Ultra-Low 0.1A Shutdown Current
FLAG and Latch Off (MAX4834) orRESET (MAX4835)
Tiny SOT23 and TDFN (3mm x 3mm) PackagesApplicationSDIO Ports and Devices
Notebook Computers
USB Ports and Devices
Cell Phones
PDAs and Palmtop Devices
GPS Systems

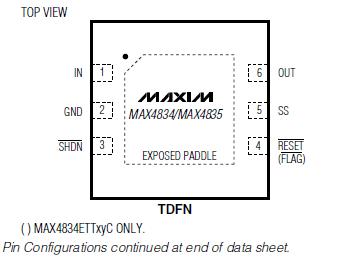

Pinout
SpecificationsIN, SHDN, FLAG, OUT to GND ........................................................................................-0.3V to +6V
RESET to GND ................................................................................................-0.3V to (VOUT + 0.3V)
SS to GND .........................................................................................................-0.3V to (VIN + 0.3V)
IN to OUT ...................................................................................................................................±6V
OUT Short Circuit to GND ................................................................................................Continuous
All Pins ESD Handling (Human Body Model)..................................................................................2kV
Continuous Power Dissipation (TA = +70°C)6-Pin SOT23 (derate 9.1mW/°C above +70°C)..727mW
6-Pin TDFN (derate 24.4mW/°C above +70°C) .................................................................1951.2mW
Operating Temperature Range .................................................................................-40°C to +85°C
Operating Junction Temperature Range..................................................................-40°C to +125°C
Storage Temperature Range ..................................................................................-65°C to +150°C
Lead Temperature (soldering, 10s) ......................................................................................+300°C
DescriptionThe MAX4834/MAX4835 family of low-dropout (LDO) linear regulators feature an accurate current-limiting switch with an integrated FLAG or RESET function. These devices operate from 2.5V to 5.5V and deliver up to 250mA of load current at a preset output voltage. Preset output voltage levels are 1.8V/2.5V/2.8V/3.0V/3.3V.
The MAX4834/MAX4835 offer a programmable softstart control function to eliminate false reset during startup. The MAX4834 provides a FLAG function to notify the system when the load current exceeds the limit. The MAX4835 provides a RESET function to notify the system when the output drops below the threshold. Additionally, reverse-current protection prevents current flowing from the output to the input. Other features include a low 90A quiescent current, a 0.1A shutdown current.
The MAX4834/MAX4835 are available in space-saving 6-pin SOT23 and TDFN packages. Each device is specified over the -40°C to +85°C extended temperature range. Contact factory for other programmed output voltage versions from 1.5V to 3.3V in 100mV increments.
For pin-compatible 100mA versions of MAX4835, refer to the MAX4832/MAX4833. For pin-compatible 500mA versions of this device, refer to the MAX4836/MAX4837.
MAX4835 Data Sheet
