Features:

On-Resistance
0.7Ω (+3V Supply)
1.6Ω (+1.8V Supply)
On-Resistance Match Between Channels 0.3Ω (+3V Supply)
On-Resistance Flatness 0.1Ω (+3V Supply)
Single-Supply Operation Down to 1.6V
High-Current Handling Capacity (150mA Continuous)
+1.8V CMOS-Logic Compatible
Fast Switching Times: t_ON = 11ns, t_OFF = 4ns
Pin Compatible with Industry-Standard 74HC4051/74HC4052/74HC4053 and MAX4617/MAX4618/MAX4619
Available in 3mm x 3mm 16-Pin Thin QFN Packages

Application

Battery-Operated Equipment
Audio Signal Routing
Low-Voltage Data-Acquisition Systems
Communications Circuits

Pinout

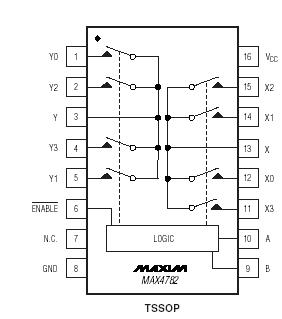

Connection Diagram

Specifications

Voltages Referenced to GND
V_CC, A, B, C, and ENABLE ..................................-0.3V to +4.6V
Voltage at Any Other Terminal
(Note 1)......................................................-0.3V to (V_CC + 0.3V)
Continuous Current into A, B, C, ENABLE.........................±10mA
Continuous Current into X, Y, Z, X_, Y_, Z_ ...................±150mA
Peak Current into X, Y, Z, X_, Y_, Z_
(pulsed at 1ms, 10% duty cycle)....................................±300mA
Continuous Power Dissipation
16-Pin Thin QFN (derate 16.9mW/°C above +70°C) ...1349mW
16-Pin TSSOP (derate 5.7mW/°C above +70°C) .......... 457mW
Operating Temperature Range .........................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range ...........................-65°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C

Description

The MAX4781/MAX4782/MAX4783 are high-speed, low-voltage, low on-resistance, CMOS analog multiplexers/ switches configured as an 8-channel multiplexer (MAX4781), two 4-channel multiplexers (MAX4782), and three single-pole/double-throw (SPDT) switches (MAX4783).

These devices operate with a +1.6V to +3.6V single supply. When powered from a +3V supply, MAX4781/ MAX4782/MAX4783 feature a 0.7Ω on-resistance (R_ON), with 0.3Ω RON matching between channels, and 0.1Ω RON flatness. These devices handle rail-to-rail analog signals while consuming less than 3µW of quiescent power. They are available in space-saving 16- pin thin QFN (3mm x 3mm) and TSSOP packages.
