MAX478

© 17A Max Supply Current (MAX478A/MAX479A)
© 70V Max Offset Voltage (MAX478A)
© Single-Supply Operation:
      Input Voltage Range Includes Ground
      Output Swings to Ground While Sinking Current
      No Pull-Down Resistors Required

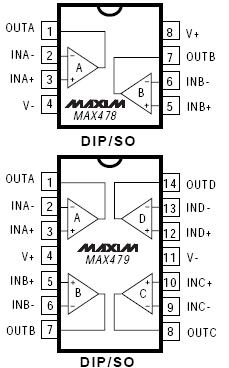

© Dual Op Amp in 8-Pin DIP/SO Package (MAX478)
    Quad Op Amp in 14-Pin DIP/SO Package (MAX479)
© 250pA Max Input Offset Current (MAX478A/MAX479A)
© 0.5V/°C Offset-Voltage Drift
© Output Sources and Sinks 5mA Load Current

Battery- or Solar-Powered Systems:
    Portable Instrumentation
    Remote Sensor Amplifier
    Satellite Circuitry
Micropower Sample-and-Hold
Thermocouple Amplifier
Micropower Filters
Single Lithium Cell Powered Systems

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±22V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±30V
Input Voltage . . . . . . . . . . . . . . . . . . . .....Equal to Positive Supply Voltage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V Below Negative Supply Voltage
Output Short-Circuit Duration. . . . . . . . . . . . . . . . . . . . . . . . . ..Continuous
Continuous Power Dissipation (TA = +70°C):
        8-Pin Plastic DIP (derate 9.09mW/°C above +70°C) . . . . ....727mW
       14-Pin Plastic DIP (derate 10.00mW/°C above +70°C) . .......800mW
       14-Pin Wide SO (derate 9.52mW/°C above +70°C) . . ..........762mW
Operating Temperature Ranges:
       MAX47_ACP_/C_ _ . . . . . . . . . . . . . . . . . . . . . . . . . . . .0°C to +70°C
       MAX47_E_ _. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40°C to +85°C
Storage Temperature Range . . . . . . . . . . . . . . . . . . . ...-65°C to +150°C
Lead Temperature (soldering, 10sec). . . . . . . . . . . . . . . . . . . ......+300°C

The MAX478 and MAX479 are dual and quad micropower, precision op amps available in 8-pin and 14-pin DIP and small-outline packages, respectively. Both devices feature an extremely low, 17A max supply current per op amp, 70V max offset voltage, 2.2V/°C max offset voltage drift (0.5V/°C typ), and 250pA max input offset current.
The MAX478 and MAX479 operate from a single supply. The input voltage range includes ground, and the output swings to within a few millivolts of ground, which eliminates pull-down resistors and saves power.
Both devices are optimized for single 3V and 5V supply operation, with guaranteed specifications at each supply voltage. Specifications for ±15V operation are also provided.
