MAX4735

Features: ·Low 0.31Ω RON·0.06Ω On-Resistance Flatness·Excellent 0.015Ω On-Resistance Matching·Low 0.02% THD into 8Ω·Low 0.015% THD into 32Ω·Audio Signal Routing·Space-Saving, 3mm x 3mm TQFN Package·1.8V Logic CompatibleApplication·Cell Phones·Digital Still Cameras·PDA...

product image

MAX4735 Picture
See larger image
SeekIC No. : 004410885 Detail

MAX4735: Features: ·Low 0.31Ω RON·0.06Ω On-Resistance Flatness·Excellent 0.015Ω On-Resistance Matching·Low 0.02% THD into 8Ω·Low 0.015% THD into 32Ω·Audio Signal Routing·Space-S...

MAX4735 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX4735
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Low 0.31Ω RON
·0.06Ω On-Resistance Flatness
·Excellent 0.015Ω On-Resistance Matching
·Low 0.02% THD into 8Ω
·Low 0.015% THD into 32Ω
·Audio Signal Routing
·Space-Saving, 3mm x 3mm TQFN Package
·1.8V Logic Compatible


Application

·Cell Phones
·Digital Still Cameras
·PDAs and Palmtop Devices
·MP3 Players


Pinout

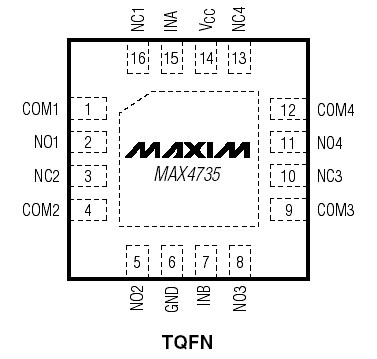

Connection Diagram


Specifications

VCC, INA, INB to GND...........................................-0.3V to +4.0V
All Other Pins to GND (Note 1)...................-0.3V to (VCC + 0.3V)
Continuous Current (NO_, NC_, COM_)....................... ±300mA
Peak Current (NO_, NC_, COM_)
(pulsed at 1ms, 50% duty cycle)...................................±400mA
Peak Current (NO_, NC_, COM_)
(pulsed at 1ms, 10% duty cycle ...................................±500mA
Continuous Power Dissipation (TA = +70°C)
16-Pin TQFN (derate 15.6mW/°C above +70°C) ...........1.25W
16-Pin TSSOP (derate 9.4mW/°C above +70°C) .........755mW
Operating Temperature Range .......................-40°C to +85°C
Storage Temperature Range ........................-65°C to +150°C
Junction Temperature...................................................+150°C
Lead Temperature (soldering, 10s) .............................+300°C
Note 1: Signals on NO_, NC_, COM_ exceeding VCC or GND are clamped by internal diodes. IN_ is clamped to GND by an internal diode. Limit forward-diode current to maximum current rating.


Description

The MAX4735 quad-SPDT switch routes audio signals in portable applications. Each channel has a 0.31Ω typical on-resistance, allowing the MAX4735 to drive 8Ω loudspeakers with less than 0.02% distortion.

The MAX4735 is configured as a quad-SPDT switch with two common control inputs. Each digital input controls two pairs of SPDT switches. The switches are fully bidirectional, allowing both multiplexing and demultiplexing operation. Break-before-make operation is guaranteed.

The MAX4735 operates from a +1.6V to +3.6V supply and over the extended -40°C to +85°C temperature range. The MAX4735 is offered in both 16-pin 3mm x 3mm TQFN and TSSOP packages.
