MAX4719

Features:

·-3dB Bandwidth: >300MHz
·Low 15pF On-Channel Capacitance
·Single-Supply Operation from +1.8V to +5.5V
·20Ω RON (max) Switch
    0.4Ω (max) RON Match (+3.0V Supply)
    1.2Ω (max) RON Flatness (+3.0V Supply)
·Rail-to-Rail® Signal Handling
·High Off-Isolation: -55dB (10MHz)
·Low Crosstalk: -80dB (10MHz)
·Low Distortion: 0.03%
·+1.8V CMOS-Logic Compatible
·<0.5nA Leakage Current at +25°C


Application

·Cell Phones
·Battery-Operated Equipment
·Audio/Video-Signal Routing
·Low-Voltage Data-Acquisition Systems
·Sample-and-Hold Circuits
·PDAs

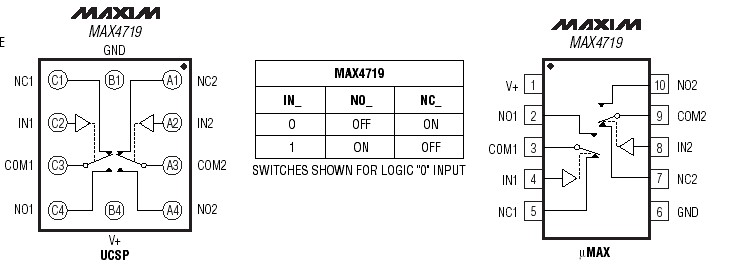

Pinout




Specifications

(All Voltages Referenced to GND)
V+, IN_...................................................................-0.3V to +6.0V
COM_, NO_, NC_ (Note 1) .............................-0.3V to (V+ + 0.3V)
Continuous Current COM_, NO_, NC_ .............................±100mA
Peak Current COM_, NO_, NC_
(pulsed at 1ms, 10% duty cycle).....................................±200mA
Continuous Power Dissipation (T_A = +70)
10-Pin µMAX (derate 5.6mW/ above +70) ..................444mW
12-Bump UCSP (derate 11.4mW/ above +70) ............909mW
ESD Method 3015.7 ...............................................................2kV
Operating Temperature Range ..............................-40 to +85
Junction Temperature........................................................+150
Storage Temperature Range ...............................-65 to +150
Lead Temperature (soldering, 10s) ...................................+300
Bump Temperature (soldering) (Note 2)
Infrared (15s) ...................................................................+220
Vapor Phase (60s) ............................................................+215


Description

The MAX4719 low-voltage, low on-resistance (RON), dual single-pole/double throw (SPDT) analog switch operates from a single +1.8V to +5.5V supply. The MAX4719 features 20Ω RON (max) with 1.2Ω flatness and 0.4Ω matching between channels. The switch offers break-before-make switching (1ns) with tON <80ns and tOFF <40ns at +2.7V. The digital logic inputs are +1.8V logic compatible with a +2.7V to +3.6V supply.

The switch is packaged in a chip-scale package (UCSP™), significantly reducing the required PC board area. The chip occupies only a 2.0mm X 1.50mm area and has a 4 ✕ 3 bump array with a bump pitch of 0.5mm. The MAX4719 is also available in a 10-pin µMAX package.
