Features: *Fast Switching Times 15ns tON 10ns tOFF*Pin Compatible with Industry-Standard 74HC4051/74HC4052/74HC4053 and MAX4581/MAX4582/MAX4583*Guaranteed On-Resistance 10W max (+5V Supply) 20W max (+3V Supply)*Guaranteed 1W On-Resistance Match Between Channels (single +5V supply)*Guaranteed Low O...

product image

MAX4617 Picture
See larger image
SeekIC No. : 004410774 Detail

MAX4617: Features: *Fast Switching Times 15ns tON 10ns tOFF*Pin Compatible with Industry-Standard 74HC4051/74HC4052/74HC4053 and MAX4581/MAX4582/MAX4583*Guaranteed On-Resistance 10W max (+5V Supply) 20W max ...

MAX4617 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX4617
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Fast Switching Times
   15ns tON
   10ns tOFF
*Pin Compatible with Industry-Standard
  74HC4051/74HC4052/74HC4053 and MAX4581/MAX4582/MAX4583
*Guaranteed On-Resistance
  10W max (+5V Supply)
  20W max (+3V Supply)
*Guaranteed 1W On-Resistance Match Between Channels (single +5V supply)
* Guaranteed Low Off-Leakage Current: 1nA at +25°C
* Guaranteed Low On-Leakage Current: 1nA at +25°C
* +2V to +5.5V Single-Supply Operation
*TTL/CMOS-Logic Compatible
* Low Crosstalk: <-96dB
* High Off-Isolation: <-93dB
* Low Distortion: <0.017% (600½)


Application

Battery-Operated Equipment
Audio/Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communications Circuits


Pinout

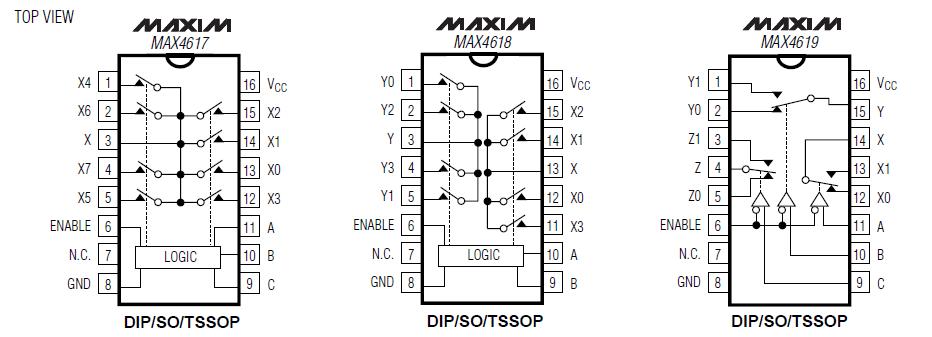

Connection Diagram


Specifications

Voltages Referenced to GND
VCC, A, B, C, or Enable..............................................................-0.3V to +6V
Voltage into Any Analog Terminal
(Note 1) ......................................................................-0.3V to (VCC + 0.3V)
Continuous Current into Any Terminal...............................................±75mA
Peak Current, X_, Y_, Z_
(pulsed at 1ms, 10% duty cycle) ....................................................±200mA
Continuous Power Dissipation (TA = +70°C)
TSSOP (derate 6.7mW/°C above +70°C).......................................533mW
Narrow SO (derate 8.70mW/°C above +70°C)..............................696mW
Plastic DIP (derate 10.53mW/°C above +70°C) ...........................842mW
Operating Temperature Ranges
MAX461_C_ _ .....................................................................0°C to +70°C
MAX461_E_ _ ..................................................................-40°C to +85°C
Storage Temperature Range .........................................-65°C to +150°C
Lead Temperature (soldering, 10sec) ...........................................+300°C


Description

The MAX4617/MAX4618/MAX4619 are high-speed, lowvoltage, CMOS analog ICs configured as an 8-channel multiplexer (MAX4617), two 4-channel multiplexers (MAX4618), and three single-pole/double-throw (SPDT) switches (MAX4619).

The MAX4617 can operate continuously with a +2V to +5.5V single supply. Each switch can handle Rail-to-Rail® analog signals. The off-leakage current is only 1nA at TA = +25°C and 10nA at TA = +85°C. All digital inputs have 0.8V to 2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using a single +5V supply.
