MAX4616

Features: *Fast Switching Times 12ns tON, 10ns tOFF* Pin Compatible with Industry-Standard 74HC4066/MAX4610* Guaranteed On-Resistance 10Ω max (+5V supply) 20Ω max (+3V supply)* Guaranteed Match Between Channels (1Ω max)* Guaranteed Flatness Over Signal Range (1Ω max)* <...

product image

MAX4616 Picture
See larger image
SeekIC No. : 004410773 Detail

MAX4616: Features: *Fast Switching Times 12ns tON, 10ns tOFF* Pin Compatible with Industry-Standard 74HC4066/MAX4610* Guaranteed On-Resistance 10Ω max (+5V supply) 20Ω max (+3V supply)* Guarante...

MAX4616 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX4616
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Fast Switching Times
    12ns tON, 10ns tOFF
* Pin Compatible with Industry-Standard
    74HC4066/MAX4610
* Guaranteed On-Resistance
    10Ω max (+5V supply)
   20Ω max (+3V supply)
* Guaranteed Match Between Channels (1Ω max)
* Guaranteed Flatness Over Signal Range (1Ω max)
* <6nA Off-Leakage Current Over Temperature
    (TA = +85°C)
* Rail-to-Rail
* Signal Handling
* TTL/CMOS-Logic Compatible


Application

*Battery-Operated Equipment
*Audio/Video Signal Routing
*Low-Voltage Data-Acquisition Systems
*Sample-and-Hold Circuits
*Communication Circuits


Pinout

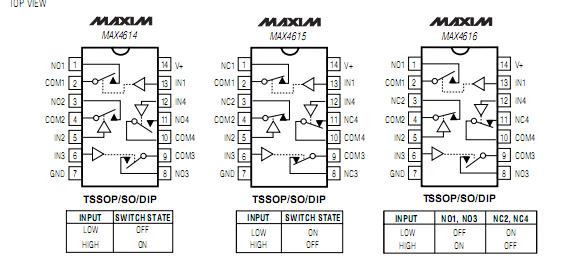

Connection Diagram


Specifications

(Voltages referenced to GND)
V+, IN_......................................................................-0.3V to +6V
COM_, NO_, NC_ (Note 1) .........................-0.3V to (V+ + 0.03V)
Continuous Current (any terminal)....................................±75mA
Peak Current (NO_, NC_, COM_)
(pulsed at 1ms, 10% duty cycle).................................±200mA
Continuous Power Dissipation (TA = +70°C)
14-Pin TSSOP (derate 6.3mW/°C above +70°C) ..........500mW
14-Pin Narrow SO (derate 8.00mW/°C above +70°C) ..640mW
14-Pin Plastic DIP (derate 10.00mW/°C above +70°C)...800mW
Operating Temperature Ranges
MAX461_C_ _ ......................................................0°C to +70°C
MAX461_E_ _....................................................-40°C to +85°C
Storage Temperature Range ...........................-65°C to +150°C
Lead Temperature (soldering, 10sec) .............................+300°C


Description

The MAX4614/MAX4615/MAX4616 quad, low-voltage, high-speed, single-pole/single-throw (SPST) analog switches are pin compatible with the indu stry-standard 74HC4066/MAX4610 analog switches. On-resistance (10Ω max) is matched between switches to 1Ω max and is flat (1Ω max) over the specified signal range. Each switch handles V+ to GND analog signal levels. Maximum off-leakage current is only 1nA at TA = +25°C and 6nA at TA = +85°C.

The MAX4614 has four normally open (NO) switches, and the MAX4615 has four normally closed (NC) switches. The MAX4616 has two NO switches and two NC switches. The MAX4616 operates from a single +2V to +5.5V supply. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using a single +5V supply.
