MAX4589

Features: ` Low Insertion Loss: < -2.5dB up to 100MHz` High Off-Isolation: -74dB at 10MHz` Low Crosstalk: < -70dB up to 10MHz` 20MHz -0.1dB Signal Bandwidth` 200MHz -3dB Signal Bandwidth` 60W (max) On-Resistance with ±5V Supplies ` 4W (max) On-Resistance Matching with ±5V Supplies` 2W (max) ...

product image

MAX4589 Picture
See larger image
SeekIC No. : 004410743 Detail

MAX4589: Features: ` Low Insertion Loss: < -2.5dB up to 100MHz` High Off-Isolation: -74dB at 10MHz` Low Crosstalk: < -70dB up to 10MHz` 20MHz -0.1dB Signal Bandwidth` 200MHz -3dB Signal Bandwidth` 60W ...

MAX4589 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX4589
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Low Insertion Loss: < -2.5dB up to 100MHz
` High Off-Isolation: -74dB at 10MHz
` Low Crosstalk: < -70dB up to 10MHz
` 20MHz -0.1dB Signal Bandwidth
` 200MHz -3dB Signal Bandwidth
` 60W (max) On-Resistance with ±5V Supplies
` 4W (max) On-Resistance Matching with ±5V Supplies
` 2W (max) On-Resistance Flatness with ±5V Supplies
` +2.7V to +12V Single-Supply Operation ±2.7V to ±6V Dual-Supply Operation
` Low Power Consumption: <20W
` Rail-to-Rail®‚ Bidirectional Signal Handling
` Parallel or SPI/QSPI/MICROWIRE-Compatible Serial Interface
` >±2kV ESD Protection per Method 3015.7
` TTL/CMOS-Compatible Inputs with VL = +5V


Application

RF Switching
Video Signal Routing
High-Speed Data Acquisition
Automatic Test Equipment
Networking

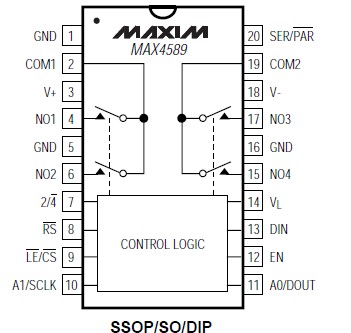

Pinout

Connection Diagram


Specifications

V+...........................................................................-0.3V to +13V
VL ..........................-0.3V to (V+ + 0.3V) or 7V (whichever is lower)
V- ...........................................................................-13V to +0.3V
V+ to V-...................................................................-0.3V to +13V
VNO_, VCOM_ to GND (Note 1)..............(V- - 0.3V) to (V+ + 0.3V)
2/4, RS, LE, CS, A1/SCLK,
A0/DOUT, EN, DIN, SER/PAR to GND ..............-0.3V to (V+ + 0.3V)
    Continuous Current into Any Terminal............................±20mA
Peak Current into Any Terminal
    (pulsed at 1ms, 10% duty cycle)...................................±40mA
ESD per Method 3015.7.......................................................±2kV
Continuous Power Dissipation (TA = +70°C)
SSOP (derate 9.1mW/°C above +70°C).........................727mW
Wide SO (derate 10mW/°C above +70°C)................... ..800mW
Plastic DIP (derate 11.1mW/°C above +70°C) ...............889mW
Operating Temperature Ranges
    MAX4589C_ P..................................................0°C to +70°C
    MAX4589E_ P ..............................................-40°C to +85°C
Storage Temperature Range ...................... ....-65°C to +150°C
Lead Temperature (soldering, 10sec) ...................... .......+300°C


Description

The MAX4589 low-voltage, dual 2-channel multiplexer is designed for RF and video signal processing at frequencies up to 200MHz in 50 and 75 systems. On-chip functions are controlled through either a parallel interface or an SPI™/QSPI™/MICROWIRE™ serial interface.

Each channel of the MAX4589 is designed using a "T" switch configuration, ensuring excellent high-frequency off-isolation. The MAX4589 has low on-resistance of 60W max, with an on-resistance match across all channels of 4 max. Additionally, on-resistance is flat across the specified signal range (2 max). The offleakage  current is under 1nA at TA = +25°C, and less than 10nA at TA = +85°C.

The MAX4589 operates from single +2.7V to +12V or dual ±2.7V to ±6V supplies. When operating with a positive supply of +5V, the inputs maintain TTL/CMOSlevel compatibility. The MAX4589 is available in 20-pin DIP, wide SO, and SSOP packages.
