MAX4532

Features:

Pin Compatible with 74HC4351/74HC4352/74HC4353
±2.0V to ±6V Dual Supplies +2.0V to +12V Single Supply
75Ω Signal Paths with ±5V Supplies 150Ω Signal Paths with +5V Supply
Rail-to-Rail Signal Handling
t ON and t OFF
= 150ns and 120ns at ±4.5V
<1 µ W Power Consumption
>2kV ESD Protection per Method 3015.7
TTL/CMOS-Compatible Inputs
Small, 20-Pin SSOP/SO/DIP Packages

Application

Battery-Operated Equipment Data Acquisition Test Equipment Avionics Networking ATE Equipment Audio-Signal Routing

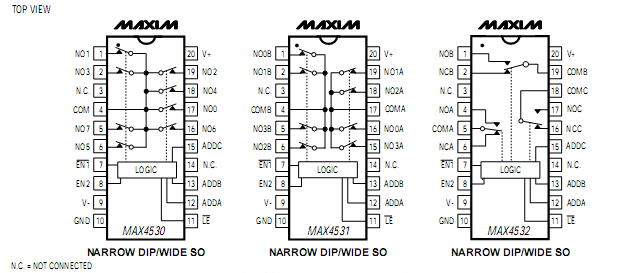

Pinout




Specifications

Voltages Referenced to V-
V+.............................................................................-0.3 to +13V
Voltage into Any Terminal (Note 1)
or ±20mA (whichever occurs first)..................-0.3 to (V+ + 0.3V)
Continuous Current into Any Terminal..............................±20mA
Peak Current, NO, NC, or COM_
(pulsed at 1ms, 10% duty cycle).......................................±40mA
ESD per Method 3015.7....................................................>2000V
Continuous Power Dissipation (T A = +70°C)
Plastic DIP (derate 11.11mW/°C above +70°C)..............889mW
SO (derate 10.00mW/°C above +70°C)..........................800mW
SSOP (derate 8.00mW/°C above +70°C)........................640mW
Operating Temperature Ranges
MAX453_C_P.........................................................0°C to +70°C
MAX453_E_P......................................................-40°C to +85°C
Storage Temperature Range............................-65°C to +150°C
Lead Temperature (soldering, 10sec)..............................+300°C


Description

The MAX4530/MAX4531/MAX4532 are low-voltage, CMOS analog ICs configured as an 8-channel multiplexer (mux) (MAX4530), two 4-channel muxes (MAX4531), and three single-pole/double-throw switches (MAX4532). These devices are pin compatible with the industry-standard 74HC4351/74HC4352/ 74HC4353. All devices have two complementary switch-enable inputs and address latching.
