MAX4507

Features: Overvoltage Protection ±40V with Power Off ±36V with Power OnOpen Signal Paths with Power Off Output Clamps to Either Rail with an InputOvervoltageAny On Channel Output is Not Affected by an Overvoltage to Any Other Channel100W max On-Resistance10ns Overvoltage Turn-On Delay No Latchup D...

product image

MAX4507 Picture
See larger image
SeekIC No. : 004410652 Detail

MAX4507: Features: Overvoltage Protection ±40V with Power Off ±36V with Power OnOpen Signal Paths with Power Off Output Clamps to Either Rail with an InputOvervoltageAny On Channel Output is Not Affected by ...

MAX4507 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX4507
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Overvoltage Protection
     ±40V with Power Off
     ±36V with Power On
Open Signal Paths with Power Off
Output Clamps to Either Rail with an Input
Overvoltage
Any On Channel Output is Not Affected by an Overvoltage to Any Other Channel
 100W max On-Resistance
 10ns Overvoltage Turn-On Delay
No Latchup During Power Sequencing
Rail-to-Rail Signal Handling
500W Output Clamp Resistance During
Overvoltage


Application

Process-Control Systems
Hot-Insertion Boards/Systems
Data-Acquisition Systems
Redundant/Backup Systems
ATE Equipment
Sensitive Instruments


Pinout

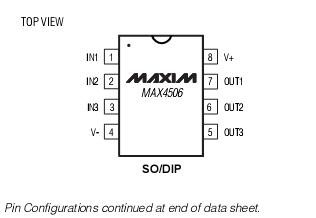

Connection Diagram


Specifications

(Voltages Referenced to GND)
V+........................................................................-0.3V to +44.0V
V-.........................................................................-44.0V to +0.3V
V+ to V-................................................................-0.3V to +44.0V
IN_ or OUT_.........................................................................±44V
IN_ Overvoltage with Power On...........................................±36V
IN_ Overvoltage with Power Off...........................................±40V
Continuous Current into Any Terminal..............................±30mA
Peak Current into Any Terminal
   (pulsed at 1ms, 10% duty cycle).................................±70mA
Continuous Power Dissipation (TA = +70°C)
   8-Pin Narrow SO  (derate 5.88mW/°C above +70°C)....471mW
   8-Pin Plastic DIP  (derate 9.09mW/°C above +70°C).....727mW
   8-Pin CERDIP (derate 8.00mW/°C above +70°C)...........640mW
   18-Pin Wide SO (derate 9.52mW/ °C above +70°C).......762mW
   18-Pin Plastic DIP (derate 11.11mW/ °C above +70°C)...889mW
   18-Pin CERDIP (derate 10.53mW/ °C above +70°C)......842mW
   20-Pin SSOP (derate 11.11mW/°C above +70°C)...........640mW
Operating Temperature Ranges
   MAX4506C_A /MAX4607C_ _.............................0°C to +70°C
   MAX4506E_A/MAX4607E_ _ ...........................-40°C to +85°C
   MAX4506MJA/MAX4607MJN........................-55°C to +125°C
Storage Temperature Range.............................-65°C to +160°C
Lead Temperature (soldering, 10sec).............................+300°C
