MAX4490AUK-T

Output Current :
Number of Channels : 1
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 125 C
Packaging : Reel
Shutdown : No
Slew Rate : 10 V/us
Package / Case : SOT-23
Input Bias Current (Max) : 50 nA
Operating Supply Voltage : 3 V, 5 V
Input Offset Voltage : 10 mV
Common Mode Rejection Ratio (Min) : 54 dB


Features:

© +2.7V to +5.5V Single-Supply Operation
© 10V/µs Slew Rate
© Rail-to-Rail Input Common-Mode Voltage Range
© Rail-to-Rail Output Voltage Swing
© 10MHz Gain-Bandwidth Product
© Unity-Gain Stable with Capacitive Loads
Up to 300pF
© 50pA Input Bias Current
© Ultra-Small, 5-Pin SC70 Package (MAX4490)


Application

Battery-Powered Instruments
Portable Equipment
Audio Signal Conditioning
Low-Power/Low-Voltage Applications
Sensor Amplifiers
RF Power Amplifier Control
High-Side/Low-Side Current Sensors

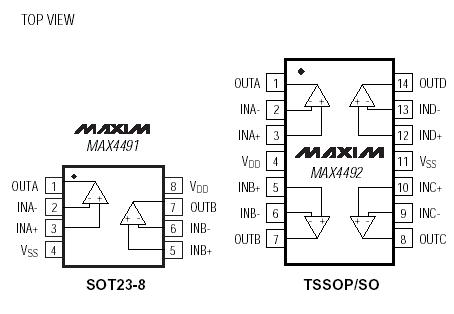

Pinout




Specifications


Supply Voltage (VDD to VSS)..................................................+6V
All Other Pins ........................................................................(VSS - 0.3V) to (VDD + 0.3V)
Output Short-Circuit Duration .................................................10s
Continuous Power Dissipation (TA = +70°C)
5-Pin SC70 (derate 2.5mW/°C above +70°C)............ ........200mW
5-Pin SOT23 (derate 7.1mW/°C above +70°C)................... 571mW
8-Pin SOT23 (derate 5.26mW/°C above +70°C)..................421 mW
14-Pin TSSOP (derate 8.3mW/°C above +70°C) ....... .........667mW
14-Pin SO (derate 8.3mW/°C above +70°C).............. ........667mW
Operating Temperature Range ........................ ....................-40°C to +125°C
Junction Temperature..................................................... .......+150°C
Storage Temperature Range ................................................ -65°C to +150°C
Lead Temperature (soldering, 10s) ................................ ......+300°C


Description

The MAX4490AUK-T single/dual/quad,low-cost CMOS op amps feature Rail-to-Rail® input andoutput capability from either a single +2.7V to+5.5Vsupply or dual ±1.35V to ±2.75V supplies. The MAX4490AUK-T is  a high slew rate of 10V/µs and a gain-bandwidthproduct of 10MHz. They can drive 2kW resistiveloads to within 55mV of either supply rail and remainunity-gain stable with capacitive loads up to 300pF.The MAX4490 is offered in the ultra-small, 5-pin SC70package, which is 50% smaller than the standard 5-pinSOT23 package. Specifications for all parts are guaranteedover the automotive (-40°C to +125°C) temperature range.



Parameters:

Technical/Catalog Information	MAX4490AUK-T
Vendor	Maxim Integrated Products
Category	Integrated Circuits (ICs)
Packaging	Tape & Reel (TR)
Amplifier Type	General Purpose
Number of Circuits	1 - Single
Package / Case	SOT-23-5
Slew Rate	10 V/s
Gain Bandwidth Product	10MHz
Current - Supply	800A
Current - Output/Channel	50mA
Voltage - Supply, Single/Dual (±)	2.7 V ~ 5.5 V, ±1.35 V ~ 2.75 V
Output Type	Rail-to-Rail
-3db Bandwidth	-
Current - Input Bias	50pA
Operating Temperature	-40°C ~ 125°C
Voltage - Input Offset	1500V
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MAX4490AUK T MAX4490AUKT
