MAX4474

Features: *Ultra-Low 750nA Supply Current Per Amplifier*Ultra-Low +1.8V Supply Voltage Operation*Ground-Sensing Input Common-Mode Range*Outputs Swing Rail-to-Rail*No Phase Reversal for Overdriven Inputs*High 120dB Open-Loop Voltage Gain*Low 500V Input Offset Voltage*9kHz Gain-Bandwidth Product (MA...

product image

MAX4474 Picture
See larger image
SeekIC No. : 004410627 Detail

MAX4474: Features: *Ultra-Low 750nA Supply Current Per Amplifier*Ultra-Low +1.8V Supply Voltage Operation*Ground-Sensing Input Common-Mode Range*Outputs Swing Rail-to-Rail*No Phase Reversal for Overdriven In...

MAX4474 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX4474
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Ultra-Low 750nA Supply Current Per Amplifier
* Ultra-Low +1.8V Supply Voltage Operation
* Ground-Sensing Input Common-Mode Range
* Outputs Swing Rail-to-Rail
*No Phase Reversal for Overdriven Inputs
* High 120dB Open-Loop Voltage Gain
* Low 500V Input Offset Voltage
* 9kHz Gain-Bandwidth Product (MAX4470/MAX4471/MAX4472)
* 40kHz Gain-Bandwidth Product (MAX4464/MAX4474)
* 250pF (min) Capacitive Load Capability
* Available in Tiny 5-Pin SC70 and 8-Pin SOT23 Packages


Application

Battery-Powered
Systems
Portable Instrumentation
Pagers and Cellphones
Micropower
Thermostats
Electrometer Amplifiers
Solar-Powered Systems
Remote Sensor Active
Badges
pH Meters


Pinout

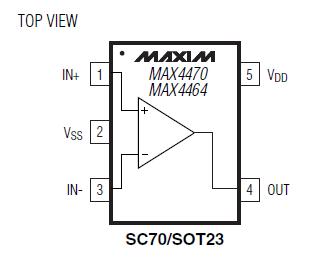

Connection Diagram


Specifications

VDD to VSS ...............................................................-0.3V to +6V
IN_+ or IN_-......................................(VSS - 0.3V) to (VDD + 0.3V)
OUT_ Shorted to VSS or VDD......................................Continuous
Continuous Power Dissipation (TA = +70°C)
5-Pin SC70 (derate 3.1mW/°C above +70°C).................247mW
5-Pin SOT23 (derate 7.1mW/°C above +70°C)...............571mW
8-Pin SOT23 (derate 8.9mW/°C above +70°C)...............714mW
8-Pin MAX (derate 4.5mW/°C above +70°C).................362mW
8-Pin SO (derate 5.88mW/°C above +70°C)...................471mW
14-Pin TSSOP (derate 9.1mW/°C above +70°C) ............727mW
14-Pin SO (derate 8.33mW/°C above +70°C).................667mW
Operating Temperature Range ......................... -40°C to +85°C
Junction Temperature ......................................................+150°C
Storage Temperature Range ............................-65°C to +150°C
Lead Temperature (soldering, 10s) ..................................+300°C


Description

The MAX4464/MAX4470/MAX4471/MAX4472/MAX4474 family of micropower op amps operate from a single +1.8V to +5.5V supply and draw only 750nA of supply current. The MAX4470 family feature ground-sensing inputs and Rail-to-Rail® output. The ultra-low supply current, low-operating voltage, and rail-to-rail output capabilities make these operational amplifiers ideal for
use in single lithium ion (Li+), or two-cell NiCd or alkaline battery systems.

The rail-to-rail output stage of the MAX4464/MAX4470/ MAX4471/MAX4472/MAX4474 amplifiers is capable of driving the output voltage to within 4mV of the rail with a 100k load, and can sink and source 11mA with a +5V supply. These amplifiers are available in both fully compensated and decompensated versions. The single AX4470, dual MAX4471, and the quad MAX4472 are nity-gain stable. The single MAX4464 and the dual AX4474 are stable for closed-loop gain configurations of +5V/V. These amplifiers are available in space-saving SC70, SOT23, MAX, and TSSOP packages.
