MAX4469

Features: *+2.4V to +5.5V Supply Voltage Operation*Versions with 5nA Complete Shutdown Available (MAX4467/MAX4468)*Excellent Power-Supply Rejection Ratio: 112dB*Excellent Common-Mode Rejection Ratio: 126dB*High AVOL: 125dB (RL = 100k)*Rail-to-Rail Outputs*Low 24A Quiescent Supply Current*Gain Band...

product image

MAX4469 Picture
See larger image
SeekIC No. : 004410622 Detail

MAX4469: Features: *+2.4V to +5.5V Supply Voltage Operation*Versions with 5nA Complete Shutdown Available (MAX4467/MAX4468)*Excellent Power-Supply Rejection Ratio: 112dB*Excellent Common-Mode Rejection Ratio...

MAX4469 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX4469
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* +2.4V to +5.5V Supply Voltage Operation
* Versions with 5nA Complete Shutdown Available (MAX4467/MAX4468)
* Excellent Power-Supply Rejection Ratio: 112dB
* Excellent Common-Mode Rejection Ratio: 126dB
* High AVOL: 125dB (RL = 100k)
* Rail-to-Rail Outputs
* Low 24A Quiescent Supply Current
* Gain Bandwidth Product:
   200kHz (MAX4465/MAX4467/MAX4469)
   600kHz AV 5 (MAX4466/MAX4468)
* Available in Space-Saving Packages
   5-Pin SC70 (MAX4465/MAX4466)
   8-Pin SOT23 (MAX4467/MAX4468/MAX4469)


Application

Microphone Preamplifiers
Hearing Aids
Cellular Phones
Voice-Recognition Systems
Digital Dictation Devices
Headsets
Portable Computing


Pinout

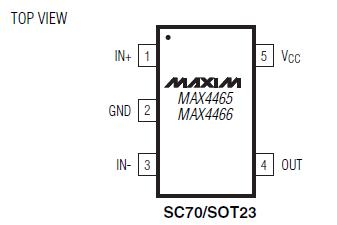

Connection Diagram


Specifications

Supply Voltage (VCC to GND)................................................+6V
All Other Pins to GND.................................-0.3V to (VCC + 0.3V)
Output Short-Circuit Duration
OUT Shorted to GND or VCC.....................................Continuous
Continuous Power Dissipation (TA = +70°C)
5-Pin SC70 (derate 2.5mW/°C above +70°C) ............200mW
5-Pin SOT23 (derate 7.1mW/°C above +70°C) ..........571mW
8-Pin SOT23 (derate 5.3mW/°C above +70°C) ..........421mW
8-Pin SO (derate 5.88mW/°C above +70°C) ..............471mW
Operating Temperature Range ......................-40°C to +85°C
Storage Temperature Range .......................-65°C to +150°C
Junction Temperature...................................................+150°C
Lead Temperature (soldering, 10s) .............................+300°C


Description

The MAX4465MAX4469 are micropower op amps optimized for use as microphone preamplifiers. They provide the ideal combination of an optimized gain bandwidth product vs. supply current, and low voltage operation in ultra-small packages. The MAX4465/ MAX4467/MAX4469 are unity-gain stable and deliver a 200kHz gain bandwidth from only 24A of supply current.
The MAX4466/MAX4468 are decompensated for a minimum stable gain of +5V/V and provide a 600kHz gain bandwidth product. In addition, these amplifiers feature Rail-to-Rail® outputs, high AVOL, plus excellent power-supply rejection and common-mode rejection ratios for operation in noisy environments.

The MAX4467/MAX4468 include a complete shutdown mode. In shutdown, the amplifiers' supply current is reduced to 5nA and the bias current to the external microphone is cut off for ultimate power savings. The single MAX4465/MAX4466 are offered in the ultra-small 5-pin SC70 package, while the single with shutdown MAX4467/MAX4468 and dual MAX4469 are available in the space-saving 8-pin SOT23 package.
