Features: · 16 ✕ 16 Nonblocking Matrix with Buffered Inputs and Outputs
· Operates from ±3V, ±5V, or +5V Supplies
· Individually Programmable Output Buffer Gain (AV = +1V/V or +2V/V)
· High-Impedance Output Disable for Wired-OR Connections
· Fast-Switching (40ns) 2:1 OSD Insertion Mux
· 0.1dB Gain Flatness to 14MHz
· -62dB Crosstalk, -110dB Isolation at 6MHz
· 0.02%/0.12° Differential Gain/Differential Phase Error
· Low 195mW Power Consumption (0.76mW per Point)Application· Security Systems
· Video Routing

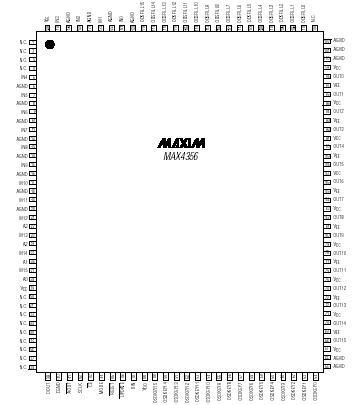

· Video-on-Demand SystemsPinout
SpecificationsAnalog Supply Voltage (VCC - VEE) .....................................+11V
Digital Supply Voltage (VDD - DGND) ....................................+6V
Analog Supplies to Analog Ground
(VCC - AGND) and (AGND - VEE) .........................................+6V
Analog Ground to Digital Ground .........................-0.3V to +0.3V
IN_, OSDFILL_ Voltage Range......... (VCC + 0.3V) to (VEE - 0.3V)
OUT_ Short-Circuit Duration to AGND, VCC, or VEE.......Indefinite
SCLK, CE, UPDATE, MODE, A_, DIN, DOUT,
RESET, AOUT, OSDKEY_.............(VDD + 0.3V) to (DGND - 0.3V)
Current into Any Analog Input Pin (IN_, OSDFILL_) ........±50mA
Current into Any Analog Output Pin (OUT_).....................±75mA
Continuous Power Dissipation (TA = +70°C)
128-Pin TQFP (derate 25mW/°C above +70°C)..................2W
Operating Temperature Range ..........................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range ............................-65°C to +150°C
Lead Temperature (soldering, 10s) ................................ +300°C
` Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
DescriptionThe MAX4356 is a 16 ✕ 16 highly integrated video crosspoint switch matrix with input and output buffers and On-Screen Display (OSD) Insertion. This device operates from dual ±3V to ±5V supplies or from a single +5V supply. Digital logic is supplied from an independent single +2.7V to +5.5V supply. Individual outputs can be switched between an input video signal source and OSD information through an internal, dedicated fast 2:1 mux (40ns switching times) located before the output buffer. All inputs and outputs are buffered, with all outputs able to drive standard 75Ω reverse-terminated video loads.
The switch matrix configuration and output buffer gain of MAX4356 are programmed via an SPI/QSPI™-compatible, threewire serial interface and initialized with a single update signal. The unique serial interface operates in two modes facilitating both fast updates and initialization. On power-up, all outputs are initialized in the disabled state to avoid output conflicts in large-array configurations.
Superior flexibility, high integration, and space-saving packaging make MAX4356 nonblocking switch matrix ideal for routing video signals in security and video-ondemand systems.
The MAX4356 is available in a 128-pin TQFP package and specified over an extended -40°C to 85°C temperature range.
MAX4356 Data Sheet
