MAX4338

Features: *50mA Output Drive Capability*Low 0.003% THD (20kHz into 10k)*Rail-to-Rail® Inputs and Outputs*5MHz Gain-Bandwidth Product*95dB Large-Signal Voltage Gain*90dB Power-Supply Rejection Ratio*No Phase Reversal for Overdrive Inputs*Ultra-Low Power Shutdown/Mute Mode Reduces Supply Current...

product image

MAX4338 Picture
See larger image
SeekIC No. : 004410525 Detail

MAX4338: Features: *50mA Output Drive Capability*Low 0.003% THD (20kHz into 10k)*Rail-to-Rail® Inputs and Outputs*5MHz Gain-Bandwidth Product*95dB Large-Signal Voltage Gain*90dB Power-Supply Rejection Ra...

MAX4338 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX4338
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* 50mA Output Drive Capability
* Low 0.003% THD (20kHz into 10k)
* Rail-to-Rail® Inputs and Outputs
*5MHz Gain-Bandwidth Product
* 95dB Large-Signal Voltage Gain
* 90dB Power-Supply Rejection Ratio
* No Phase Reversal for Overdrive Inputs
* Ultra-Low Power Shutdown/Mute Mode Reduces Supply Current to 0.04A Places Output in High-Impedance State
* Thermal Overload Protection


Application

32 Headphone Drivers
Portable/Battery-Powered Instruments
Wireless PA Control
Hands-Free Car Phones
Transformer/Line Drivers
DAC/ADC Buffers


Pinout

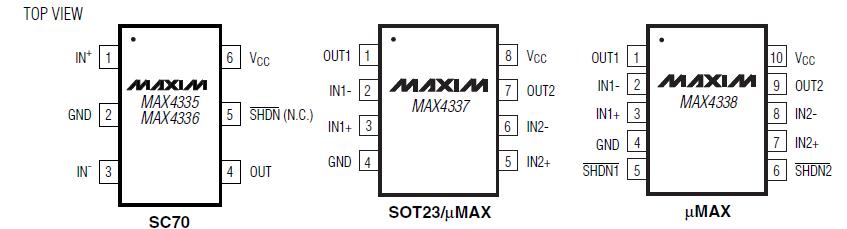

Connection Diagram


Specifications

Supply Voltage (VCC to GND) ..................................-0.3V to +6V
All Other Pins to GND .....................(GND - 0.3V) to (VCC + 0.3V)
Output Short-Circuit Duration to VCC or GND............Continuous
Continuous Power Dissipation (TA = +70°C)
6-Pin SC70 (derate 3.1mW/°C above +70°C)...............245mW
8-Pin SOT23 (derate 9.1mW/°C above +70°C).............727mW
8-Pin MAX (derate 4.5mW/°C above +70°C) ..............362mW
10-Pin MAX (derate 5.6mW/°C above +70°C) ............444mW
Operating Temperature Range ........................-40°C to +85°C
Junction Temperature.....................................................+150°C
Storage Temperature Range ..........................-65°C to +150°C
Lead Temperature (soldering, 10s) ................................+300°C


Description

The MAX4335MAX4338 op amps deliver 40mW perchannel into 32 from ultra-small SC70/SOT23 packagesmaking them ideal for mono/stereo headphonedrivers in portable applications. These amplifiers havea 5MHz gain-bandwidth product and are guaranteed todeliver 50mA of output current while operating from asingle supply of 2.7V to 5.5V.

The MAX4336 and the MAX4338 have a shutdown/mutemode that reduces the supply current to 0.04A peramplifier and places the outputs in a high-impedancestate.

The MAX4335MAX4338 have 90dB power-supplyrejection ratio (PSRR), eliminating the need for costlypre-regulation in most audio applications. Both theinput voltage range and the output voltage swinginclude both supply rails, maximizing dynamic range.

The MAX4335/MAX4336 single amplifiers are availablein ultra-small 6-pin SC70 packages. The MAX4337/MAX4338 dual amplifiers are available in an 8-pinSOT23 and a 10-pin MAX package, respectively. Alldevices are specified from -40°C to +85°C.
