Features:

 Single Supply: +3.0V to +5.5V
 2mVP-P Input Sensitivity
 1.2ns Output Edge Speed
Loss-of-Signal Detector with Programmable Threshold
Analog Received-Signal-Strength Indicator
Output Squelch Function
 Choice of TTL or PECL LOS Outputs
 Compatible with 4B/5B Data Coding


Application

125Mbps FDDI Receivers
155Mbps LAN ATM Receivers
Fast Ethernet Receivers
ESCON Receivers
155Mbps FTTx Receivers


Pinout

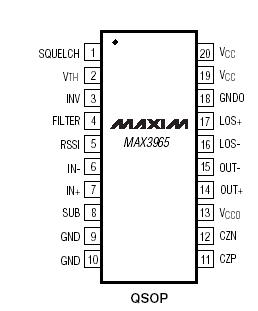

Connection Diagram


Specifications

(SUB, GND, GNDO tied to ground)
VCC, VCCO..................................................................-0.5V to +7.0V
FILTER, RSSI, IN+, IN-, CZP, CZN, SQUELCH,
LOS+, LOS-, INV, VTH, OUT+, OUT- ................-0.5V to (VCC + 0.5V)
PECL Output Current (OUT+, OUT-, LOS+, LOS-) ....................50mA
Differential Voltage Between CZP and CZN...............-1.5V to +1.5V
Differential Voltage Between IN+ and IN- ................-1.5V to +1.5V
Continuous Power Dissipation (TA = +70°C)
20-Lead Thin QFN
(derate 16.9mW/°C above +70°C) ................................1349mW
20-Pin QSOP (derate 6.7mW/°C above +70°C)................500mW
Operating Temperature Range............................-40°C to +85°C
Operating Junction Temperature Range (die)....-40°C to +150°C
Processing Temperature (die) ...........................................+400°C
Storage Temperature Range .............................-65°C to +160°C
Lead Temperature (soldering, 10sec) ...............................+300°C



Description

The MAX3964 limiting amplifier, with 2mVP-P input sensitivity and PECL data outputs, is ideal for low-cost ATM, FDDI, and Fast Ethernet fiber optic applications.

The MAX3964 features an integrated power detector that senses the input-signal power. It provides a received-signal- strength indicator (RSSI), which is an analog indication of the power level and complementary PECL loss-ofsignal (LOS) outputs, which indicate when the power level drops below a programmable threshold. The threshold can be adjusted to detect signal amplitudes as low as 2.7mVp-p. An optional squelch function disables switching of the data outputs by holding them at a known state during an LOS condition.

The MAX3965 provides the same functionality, but offers TTL-compatible LOS outputs. The MAX3968 provides the same functionality as the MAX3964, but has data-output edge speed suitable for ESCON and 266Mbps fibre channel applications.

The MAX3964/MAX3965/MAX3968 are available in die form, as tested wafers, and in 20-pin QSOP packages. The MAX3964ETP is available in a 20-pin thin QFN package.
