MAX3964

Features: Single Supply: +3.0V to +5.5V2mVP-P Input Sensitivity1.2ns Output Edge SpeedLoss-of-Signal Detector with Programmable ThresholdAnalog Received-Signal-Strength IndicatorOutput Squelch FunctionChoice of TTL or PECL LOS OutputsCompatible with 4B/5B Data CodingApplication125Mbps FDDI Receive...

product image

MAX3964 Picture
See larger image
SeekIC No. : 004410246 Detail

MAX3964: Features: Single Supply: +3.0V to +5.5V2mVP-P Input Sensitivity1.2ns Output Edge SpeedLoss-of-Signal Detector with Programmable ThresholdAnalog Received-Signal-Strength IndicatorOutput Squelch Funct...

MAX3964 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX3964
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Single Supply: +3.0V to +5.5V
 2mVP-P Input Sensitivity
 1.2ns Output Edge Speed
Loss-of-Signal Detector with Programmable Threshold
Analog Received-Signal-Strength Indicator
Output Squelch Function
 Choice of TTL or PECL LOS Outputs
 Compatible with 4B/5B Data Coding


Application

125Mbps FDDI Receivers
155Mbps LAN ATM Receivers
Fast Ethernet Receivers
ESCON Receivers
155Mbps FTTx Receivers


Pinout

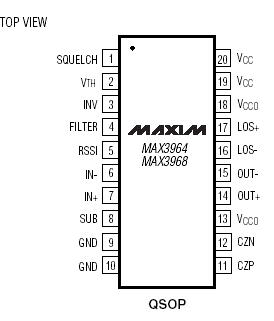

Connection Diagram


Specifications

(SUB, GND, GNDO tied to ground)
VCC, VCCO..................................................................-0.5V to +7.0V
FILTER, RSSI, IN+, IN-, CZP, CZN, SQUELCH,
LOS+, LOS-, INV, VTH, OUT+, OUT- ................-0.5V to (VCC + 0.5V)
PECL Output Current (OUT+, OUT-, LOS+, LOS-) ....................50mA
Differential Voltage Between CZP and CZN...............-1.5V to +1.5V
Differential Voltage Between IN+ and IN- ................-1.5V to +1.5V
Continuous Power Dissipation (TA = +70°C)
20-Lead Thin QFN
(derate 16.9mW/°C above +70°C) ................................1349mW
20-Pin QSOP (derate 6.7mW/°C above +70°C)................500mW
Operating Temperature Range............................-40°C to +85°C
Operating Junction Temperature Range (die)....-40°C to +150°C
Processing Temperature (die) ...........................................+400°C
Storage Temperature Range .............................-65°C to +160°C
Lead Temperature (soldering, 10sec) ...............................+300°C



Description

The MAX3964 limiting amplifier, with 2mVP-P input sensitivity and PECL data outputs, is ideal for low-cost ATM, FDDI, and Fast Ethernet fiber optic applications.

The MAX3964 features an integrated power detector that senses the input-signal power. It provides a received-signal- strength indicator (RSSI), which is an analog indication of the power level and complementary PECL loss-ofsignal (LOS) outputs, which indicate when the power level drops below a programmable threshold. The threshold can be adjusted to detect signal amplitudes as low as 2.7mVp-p. An optional squelch function of MAX3964 disables switching of the data outputs by holding them at a known state during an LOS condition.

The MAX3965 provides the same functionality, but offers TTL-compatible LOS outputs. The MAX3968 provides the same functionality as the MAX3964, but has data-output edge speed suitable for ESCON and 266Mbps fibre channel applications.

The MAX3964/MAX3965/MAX3968 are available in die form, as tested wafers, and in 20-pin QSOP packages. The MAX3964ETP is available in a 20-pin thin QFN package.
