MAX3760

V_CC.............................................................................-0.5V to +7.0V
Continuous Current
IN, FILTER ..................................................................-5mA to +5mA
OUT+, OUT-.............................................................-25mA to +25mA
Voltage at INREF ........................................................-0.5V to +0.5V
Voltage at COMP...............................................-0.5V to (V_CC + 0.5V)
Continuous Power Dissipation (T_A = +85°C)
SO (derate 5.88mW/°C above +85°C)................................383mW
Storage Temperature Range ...............................-65°C to +160°C
Lead Temperature (soldering, 10sec) .................................+300°C
Operating Junction Temperature Range (die) .....-55°C to +150°C
Processing Temperature (die) ............................................+400°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

The MAX3760 is a transimpedance preamplifier for 622Mbps ATM applications. It operates from a single +5V supply and typically consumes only 100mW power. The preamplifier MAX3760 converts a small photodiode current to a differential voltage. A DC cancellation circuit provides a true differential output swing over a wide range of input current levels, thus reducing pulsewidth distortion.6.5k transimpedance gain and 560MHz bandwidth, combined with low 73nA input-referred noise, provide -31.5dBm typical sensitivity in 1300nm receivers. The MAX3760 accepts a 1mAp-p input current, resulting in a typical optical overload of -3dBm. The device operates over an extended temperature range of -40°C to +85°C.

The MAX3760 is internally compensated and requires few external components. In die form it includes a space-saving filter connection, which provides positive bias for the photodiode through a 1k resistor to VCC. These features, combined with the die aspect ratio and dimensioning, allow the MAX3760 to assemble easily into a TO-style header with a photodiode.

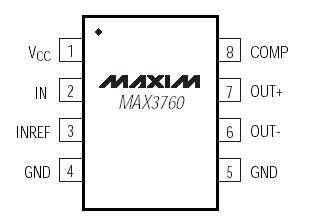

The MAX3760 is designed to be used with either the MAX3761 or the MAX3762 limiting-amplifier ICs. When combined with a photodiode, the chipset forms a complete 5V, 622Mbps receiver. The MAX3760 is available in die form and in an 8-pin SO package.
