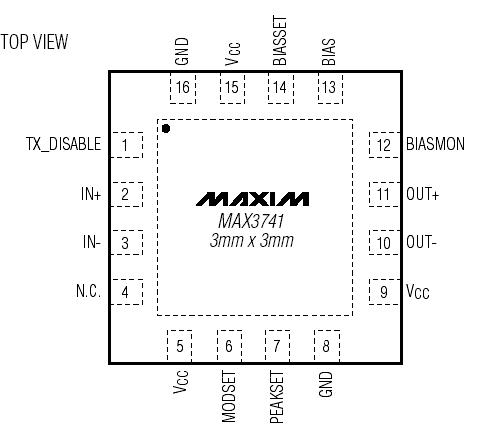

MAX3741

Supply Voltage (V_CC) ............................................-0.5V to +5.0V
Voltage at TX_DISABLE, IN+, IN-, MODSET,
PEAKSET, BIASSET, BIAS, BIASMON ............-0.5V to (V_CC + 0.5V)
Voltage at OUT+, OUT-...........................(V_CC - 2V) to (V_CC + 2V)
Current into OUT+, OUT- ....................................................60mA
Continuous Power Dissipation (T_A = +85°C)
16-Lead Thin QFN (derate 25mW/°C above +85°C) ...........2W
Operating Temperature Range ....................... -40°C to +85°C
Storage Temperature Range ..........................-55°C to +150°C
Lead Temperature (soldering, 10s) ................................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

The MAX3741 is a high-speed VCSEL driver for smallform-factor (SFF) and small-form-factor pluggable (SFP) fiber-optic LAN transmitters. It contains a bias generator, laser modulator, and peaking current option to improve VCSEL edge speed. The driver MAX3741 accommodates common cathode and differential configurations.

The MAX3741 operates up to 3.2Gbps. It can switch up to 15mA of laser modulation current and source up to 15mA of bias current. The MAX3741 is designed to interface with a digital potentiometer and control circuitry. The MAX3741 accommodates various VCSEL packages, including low-cost TO-46 headers.

The MAX3741 is available in a compact 3mm x 3mm 16-pin thin QFN package and operates over a temperature range of -40°C to +85°C.
