Features: · Single +3.3V Power Supply
· 47mA Power-Supply Current
· 85mA Modulation Current
· 100mA Bias Current
· Automatic Power Control (APC)
· Modulation Compensation
·On-Chip Temperature Compensation
· Self-Biased Inputs for AC-Coupling
·Ground-Referenced Current Monitors
· Laser Safety, Shutdown, and Alarm OutputsApplication·Multirate OC-3 to OC-48 FEC Transceivers
·Gigabit Ethernet SFF/SFP and GBIC Transceivers

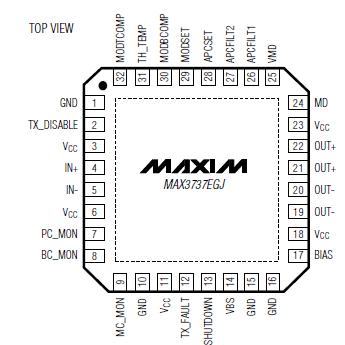

·1Gbps/2Gbps Fibre Channel SFF/SFP and GBIC TransceiversPinout
SpecificationsSupply Voltage VCC.................................................-0.5V to +6.0V
IN+, IN-, TX_DISABLE, TX_FAULT, SHUTDOWN,
MC_MON, BC_MON, PC_MON, VBS, VMD,
APCFILT1, APCFILT2, MD, TH_TEMP,
MODTCOMP, MODBCOMP, MODSET, and
APCSET Voltage ..............................................-0.5V to VCC + 0.5V
OUT+, OUT-, BIAS Current..................................-20mA to +150mA
Continuous Power Dissipation (TA = +85°C)
32-Pin QFN (derate 21.2mW/°C above +85°C) ...................1.3W
Operating Junction Temperature Range.............-55°C to +150°C
Storage Temperature Range .............................-55°C to +150°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
DescriptionThe MAX3737 is a +3.3V laser driver designed for multirate transceiver modules with data rates from 155Mbps to 2.7Gbps. Lasers can be DC-coupled to the MAX3737 for reduced component count and ease of multirate operation.
Laser extinction ratio control (ERC) of MAX3737 combines the features of automatic power control (APC), modulation compensation, and built-in thermal compensation. The APC loop maintains constant average optical power. Modulation compensation increases the modulation current in proportion to the bias current. These control loops of MAX3737 combined with thermal compensation maintain a constant optical extinction ratio over temperature and lifetime.
The MAX3737 accepts differential data input signals. The wide 5mA to 60mA (up to 85mA AC-coupled) modulation current range and up to 100mA bias current range makes the MAX3737 ideal for driving FP/DFB lasers in fiber-optic modules. External resistors set the required laser current levels. The MAX3737 provides transmit disable control (TX_DISABLE), single-point fault tolerance, bias-current monitoring, modulation-current monitoring, and photocurrent monitoring. The device also offers a latched failure output (TX_FAULT) to indicate faults, such as when the APC loop is no longer able to maintain the average optical power at the required level. The MAX3737 is compliant with the SFF- 8472 transmitter diagnostic and SFP MSA timing requirements.
The MAX3737 is offered in a 5mm x 5mm 32-pin thin QFN and QFN package and operates over the -40°C to +85°C extended temperature range.
MAX3737 Data Sheet
