Product Details

Description



Features:

* SFP Reference Design Available
* Fully Compliant with SFP and SFF-8472 MSAs
* Programmable Modulation Current from 10mA to
   60mA (DC-Coupled)
* Programmable Modulation Current from 10mA to
   85mA (AC-Coupled)
* Programmable Bias Current from 1mA to 100mA
* Edge Transition Times <51ps
* 27mA (typ) Power-Supply Current
* Multirate 155Mbps to 2.7Gbps Operation
* Automatic Average Power Control
* On-Chip Pullup Resistor for TX_DISABLE
* 24-Pin 4mm × 4mm QFN package


Application

* Gigabit Ethernet SFP/SFF Transceiver Modules
* 1G/2G Fibre Channel SFP/SFF Transceiver
   Modules
* Multirate OC3 to OC48-FEC SFP/SFF Transceiver
   Modules


Pinout

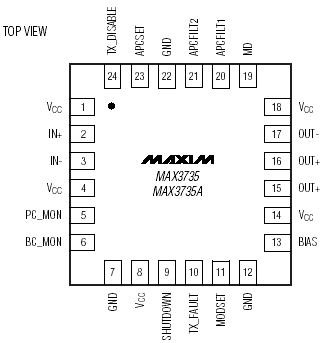

Connection Diagram


Specifications

Supply Voltage, VCC...................................................-0.5V to +6.0V
Current into BIAS, OUT+, OUT- ............................-20mA to +150mA
Current into MD..........................................................-5mA to +5mA
Voltage at IN+, IN-, TX_DISABLE, TX_FAULT,
   SHUTDOWN...................................................-0.5V to (VCC + 0.5V)
Voltage at BIAS, PC_MON, BC_MON,
   MODSET, APCSET .........................................-0.5V to (VCC + 0.5V)
Voltage at OUT+, OUT-...................................+0.5V to (VCC + 1.5V)
Voltage at APCFILT1, APCFILT2 ...................................-0.5V to +3V
Continuous Power Dissipation (TA = +85 )
   24-Lead Thin QFN (derate 20.8mW/
   above +85)..................................................................1354mW
   24-Lead QFN (derate 20.8mW/
   above +85)..................................................................1354mW
Operating Ambient Temperature Range (TA).............-40 to +85
Storage Ambient Temperature Range.....................-55 to +150
Die Attach Temperature........................................................+400
Lead Temperature (soldering, 10s) ......................................+300


Description

The MAX3735/MAX3735A are +3.3V laser drivers for SFP/SFF applications from 155Mbps up to 2.7Gbps. The devices accept differential input data and provide bias and modulation currents for driving a laser. DCcoupling to the laser allows for multirate applications and reduces the number of external components. The MAX3735/MAX3735A are fully compliant with the SFP MSA timing and the SFF-8472 transmit diagnostic requirements.

An automatic power-control (APC) feedback loop is incorporated to maintain a constant average optical power over temperature and lifetime. The wide modulation current range of 10mA to 60mA (up to 85mA AC-coupled) and bias current of 1mA to 100mA make this product ideal for driving FP/DFB laser diodes in fiber-optic modules. The resistor range for the laser current settings is optimized to interface with the DS1858 SFP controller IC.

The MAX3735/MAX3735A provide transmit-disable control, a single-point latched transmit-failure monitor output, photocurrent monitoring, and bias-current monitoring to indicate when the APC loop is unable to maintain the average optical power. The MAX3735A also features improved multirate operation.

The MAX3735/MAX3735A come in package and die form, and operate over the extended temperature range of -40 to +85.
