MAX3540

Features: ·Low Power Consumption: 760mW (typ) from a +3.3V Supply Voltage· Integrated Tracking Filters· ATSC A/74 Compliant· 40dB Adjacent Channel Protection Ratio (ACPR)· 4.4dB (typ) Low Noise Figure·Small, 7mm x 7mm, fcLGA Leadless Package· 256-QAM-Compatible Phase-Noise Performance· IF Overload...

product image

MAX3540 Picture
See larger image
SeekIC No. : 004410082 Detail

MAX3540: Features: ·Low Power Consumption: 760mW (typ) from a +3.3V Supply Voltage· Integrated Tracking Filters· ATSC A/74 Compliant· 40dB Adjacent Channel Protection Ratio (ACPR)· 4.4dB (typ) Low Noise Figu...

MAX3540 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX3540
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Low Power Consumption: 760mW (typ) from a +3.3V Supply Voltage
· Integrated Tracking Filters
· ATSC A/74 Compliant
· 40dB Adjacent Channel Protection Ratio (ACPR)
· 4.4dB (typ) Low Noise Figure
·Small, 7mm x 7mm, fcLGA Leadless Package
· 256-QAM-Compatible Phase-Noise Performance
· IF Overload Detector Controls RF Variable-Gain Amplifier
· 2-Wire I2C-Compatible Serial Control Interface


Application

·Televisions
·Analog/Digital Terrestrial Receivers
·Digital Set-Top Boxes
·Cable Modems
·VOIP Gateways


Pinout

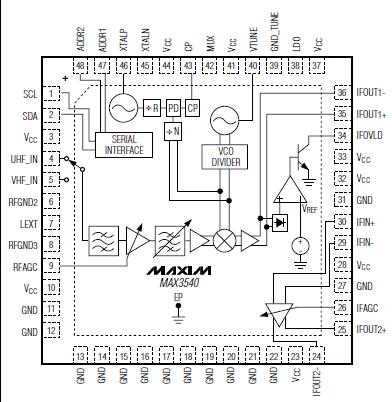

Connection Diagram


Specifications

VCC to GND........................-0.3V, +3.6V
RFIN, IFIN_, IFOUT1_, IFOUT2_, IFAGC, RFAGC,
VTUNE, LDO, MUX, CP, XTAL to GND .....-0.3V to (VCC + 0.3V)
SDA, SCL, ADDR2, ADDR1 to GND............-0.3V to +3.6V
IFOUT__ Short-Circuit Duration...............Indefinite
RF Input Power ........................+10dBm
Continuous Power Dissipation (TA = +70°C)
48-Pin fcLGA (derate 25mW/°C above +70°C) .......1.4W
Operating Temperature Range.............0°C to +85°C
Junction Temperature......................+150°C
Storage Temperature Range ............-65°C to +165°C
Lead Temperature (soldering, 10s) ......... .....+240°C


Description

The MAX3540 complete single-conversion television tuner is designed for use in analog/digital terrestrial applications and digital set-top boxes. This television tuner draws only 760mW of power from a +3.3V supply voltage.


The MAX3540 is designed to convert NTSC or ATSC signals in the 54MHz to 860MHz band to a 44MHz intermediate frequency (IF).


The MAX3540 includes a variable-gain low-noise amplifier (LNA), multiband tracking filters, a harmonic-rejection mixer, a low-noise IF amplifier, an IF power detector, and a variable-gain IF amplifier. The MAX3540 also includes fully monolithic VCOs and tank circuits as well as a complete frequency synthesizer. This highly integrated design allows for low-power tuner-on-board applications without the cost and power-dissipation issues of dual conversion tuner solutions.


The MAX3540 is specified for operation in the 0°C to +85°C temperature range and is available in a leadless 48-pin flip-chip (fcLGA) package.
